2 Port Dual Monitor KVM Switch Kit HDMI 4K60Hz with EDID

KEY FEATURES

• Efficiently manage two PCs with a set of keyboard, mouse, and dual 4K60Hz displays.
• Connect each PC to this KVM switch with one HDMI and one HDMI output for dual-monitor functionality.
• 2 Operating Modes: Mode 1 for extended desktop and Mode 2 for split desktop (each computer displays on 1 monitor simultaneously).
• K&M pass-through for compatibility with various keyboard types: wired, wireless, mechanical, and gaming.
• Easy plug & play setup with no drivers required.
• Compatible with Windows, Mac, and Linux, ideal for home, office, or education scenarios.

OTHER FEATURES

• 3 ways to switch inputs: keyboard hotkeys, front push buttons, or remote control.
• Assignable hotkey triggers from Scroll Lock to Right-CTRL.
• USB sharing for printers, jump drives, USB headsets, and webcams for teleconferencing.
• Auto-scanning with the adjustable time interval from 1 to 250 seconds.
• Transmits audio over HDMI to monitors or external speakers via KVM's stereo output.

TECHNICAL SPECIFICATIONS

• HDMI 2.0 supports 3840x2160(4K)@60hz, 3440x1440@100Hz, QHD@144hz, FHD@144hz.
• HDCP 2.2 compliant.
• EDID emulation to prevent resolution and icon rearrangement.
• No delay, zero latency keyboard, and mouse switching.
• IR remote control (battery not included). Requires 2 AAA batteries.

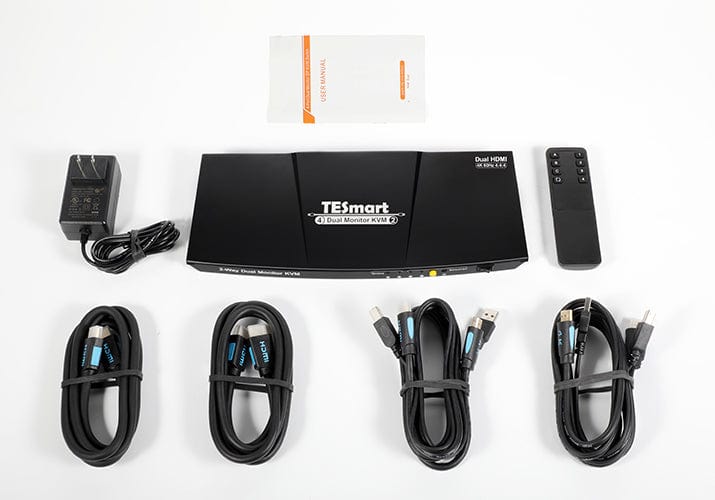

PACKING LIST

EACH PC MUST MAKE 2 VIDEO CONNECTIONS (HDMI+HDMI) TO KVM FOR DUAL MONITORS

• 1 * 2x2 HDMI+HDMI Dual Monitor KVM Switch
• 1 * DC 12V Power Adapter2 * HDMI Cables
• 2 * KVM (HDMI+USB) Cables
• 1 * IR Remote Control
• 1 * User Manual

SHIPPING

• We provide Free Express (UPS/USPS/DHL ) for US shipping orders.

1 YEAR WARRANTY, EXTENDED TO 3 YEARS

• TESmart KVM switch comes with a 1-year warranty from the date of purchase. We offer a registration extension warranty program, register to extend the warranty to 3 years.
• The warranty covers any defects in materials or workmanship under normal use. We reserve the right to replace any defective product under warranty (No Repairs, Only Exchanges).

FAQ

• The switch must receive video signals on both HDMI inputs per PC for dual monitor output.
• Audio is transmitted via HDMI connection. An HDMI monitor is required for audio.
• Hotkeys are triggered via a keyboard plugged into the dedicated mouse or keyboard ports.
• Emulation programming is locked and cannot be removed from mouse & keyboard ports.
• Dedicated mouse & keyboard ports should not be used for other types of USB devices.
• Use a powered USB hub to expand the number of USB 2.0 ports.
• If the wireless mouse/keyboard is “jumpy”, use a USB extender to reduce the distance from the receiver.
• Please install 2 AAA batteries before using the remote control (battery not included).

COMPATIBILITY INFORMATION

• Dedicated mouse & keyboard ports have emulation programming. Second-generation chipsets have “Passthrough Mode” to send special characters such as multimedia keys (play, pause, volume up/down, etc), which greatly improves keyboard compatibility.
• Keyboard software such as Logitech Options, DAS Q, Corsair iCUE, etc conflicts with the emulation programming and limits the ability to use dedicated macro keys. We recommend using the KVM’s USB 2.0 port as a workaround if this software is desired. The USB 2.0 port does not have emulation programming and therefore the KVM will not recognize hotkey switching commands. Please use a powered USB hub to expand USB connectivity, if needed.
