4 Port Dual Monitor KVM Switch Kit HDMI 4K60Hz with EDID

KEY FEATURES

• Efficiently manage 4 PCs with a set of keyboard, mouse, and dual 4K60Hz displays.
• By connecting two KVM switches HKS0802A1U(-SE) in parallel using the supplied DCCI cable, you get a 4 PC to 4 monitor KVM switch solution.
• 2 Operating Modes: Mode 1 for extended desktop and Mode 2 for split desktop (each computer displays on 1 monitor simultaneously).
• 4 ways to switch inputs: keyboard hotkeys, front push buttons, remote control, or RS232 control.
• K&M pass-through for compatibility with various keyboard types: wired, wireless, mechanical, and gaming.
• Easy plug & play setup with no drivers required.
• Compatible with Windows, Mac, and Linux, ideal for home, office, or education scenarios.
• The KVM switch comes with 4 x 1.5m HDMI/USB combo cables and 4 x 1.5m HDMI cables. We ensure that all 4 of your computers are connected to the KVM. Typically, monitors come with their own cables. If you need additional cables, we also have high-quality cables for you to choose from.
• Note 1: the difference between HKS0802A1U(-SE) and PKS0802A10 is only the port, that is, all ports of HKS0802A1U(-SE) are HDMI, and all ports of PKS0802A10 are DP.
• Note 2: due to technological reasons, all switching functions for dual monitors can only work if both graphics cables are connected to each computer.

OTHER FEATURES

• Assignable hotkey triggers from Scroll Lock to Right-CTRL.
• USB sharing for printers, jump drives, USB headsets, and webcams for teleconferencing.
• Supports automatic switching to monitor computers at a specified time interval.
• Transmits audio over HDMI to monitors or external speakers via KVM's stereo output.

TECHNICAL SPECIFICATIONS

• HDMI 2.0 supports 3840x2160(4K)@60hz, 3440x1440@100Hz, QHD@144hz, FHD@144hz.
• With high-quality cables, this KVM switch also supports QHD 2560*1440@120Hz per monitor. This requires HDMI out on the computer and HDMI 2.0 in the monitor, which many QHD monitors do not have. To do this, test 2560x1440 with the frequency directly (without a switch) from the HDMI out of the computer to the HDMI of the monitor.
• With HDCP 2.2 support, you can not only connect PCs and laptops(possibly via docking stations) but also game consoles, etc.
• EDID emulation to prevent resolution and icon rearrangement.
• HDR10 and Dolby Vision support.
• No delay, zero latency keyboard, and mouse switching.
• On/off switch on the front.
• All connections are at the back.
• IR remote control (battery not included). Requires 2 AAA batteries.

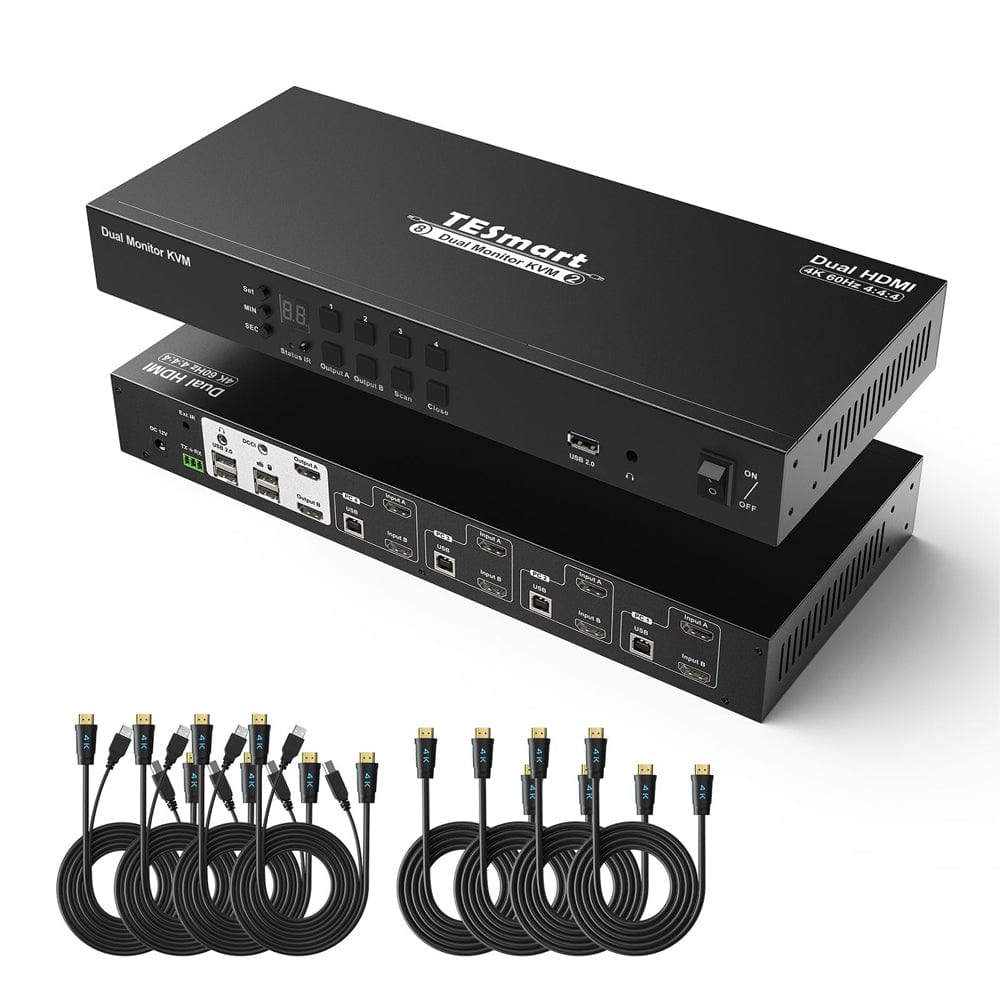

PACKING LIST

EACH PC MUST MAKE 2 VIDEO CONNECTIONS (HDMI+HDMI) TO KVM FOR DUAL MONITORS

• 1 * 4x2 Dual Monitor HDMI KVM Switch
• 4 * KVM (HDMI+USB) Cables
• 4 * HDMI Cables
• 1 * IR Receiver Cable
• 1 * AUX Cable
• 1 * DC 12V Power Adapter
• 1 * 3 Pins Connector (For RS232)
• 1 * IR Remote Control
• 2 * Rack-ears
• 1 * User Manual

SHIPPING

• We provide Free Express (UPS/USPS/DHL ) for US shipping orders.

1 YEAR WARRANTY, EXTENDED TO 3 YEARS

• TESmart KVM switch comes with a 1-year warranty from the date of purchase. We offer a registration extension warranty program, register to extend the warranty to 3 years.
• The warranty covers any defects in materials or workmanship under normal use. We reserve the right to replace any defective product under warranty (No Repairs, Only Exchanges).

FAQs

• The switch must receive video signals on both HDMI inputs per PC for dual monitor output.
• Audio is transmitted via HDMI connection. An HDMI monitor is required for audio.
• Hotkeys are triggered via a keyboard plugged into the dedicated mouse or keyboard ports.
• Emulation programming is locked and cannot be removed from mouse & keyboard ports.
• Dedicated mouse & keyboard ports should not be used for other types of USB devices.
• Use a powered USB hub to expand the number of USB 2.0 ports.
• If the wireless mouse/ keyboard is “jumpy”, use a USB extender to reduce the distance from the receiver.
• Please install 2 AAA batteries before using the remote control (battery not included).

COMPATIBILITY INFORMATION

• Dedicated mouse & keyboard ports have emulation programming. Second-generation chipsets have “Passthrough Mode” to send special characters such as multimedia keys (play, pause, volume up/down, etc), which greatly improves keyboard compatibility.
• Keyboard software such as Logitech Options, DAS Q, Corsair iCUE, etc conflicts with the emulation programming and limits the ability to use dedicated macro keys. We recommend using the KVM’s USB 2.0 port as a workaround if this software is desired. The USB 2.0 port does not have emulation programming and therefore the KVM will not recognize hotkey switching commands. Please use a powered USB hub to expand USB connectivity, if needed.
