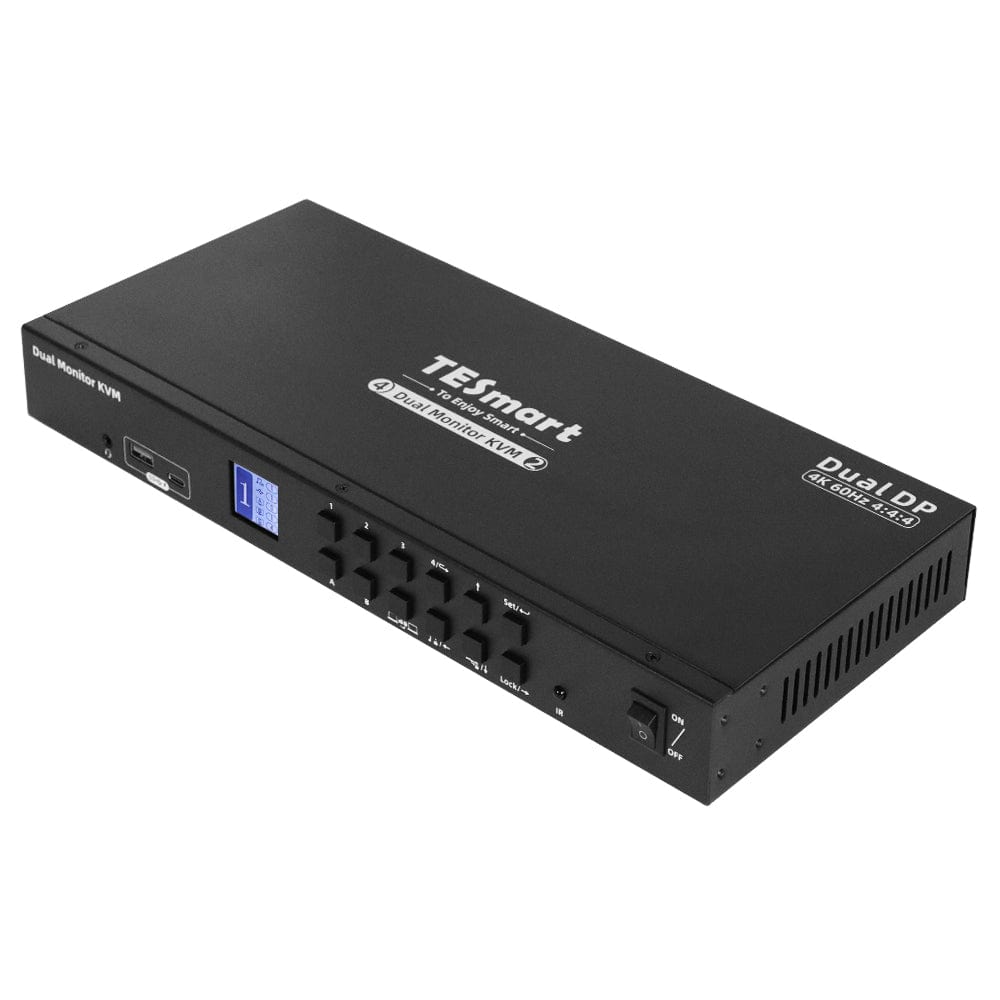

4 Port Dual Monitor KVM Switch Kit DP 4K60Hz with USB 3.0 Docking Station, EDID

KEY FEATURES

• 4 USB 3.0 (including 1 USB C), 2 of which are able to charge (charging the devices like mobile phones and tablets connected to front panel USB ports).
• Newly added an integrated microphone and L/R audio output.

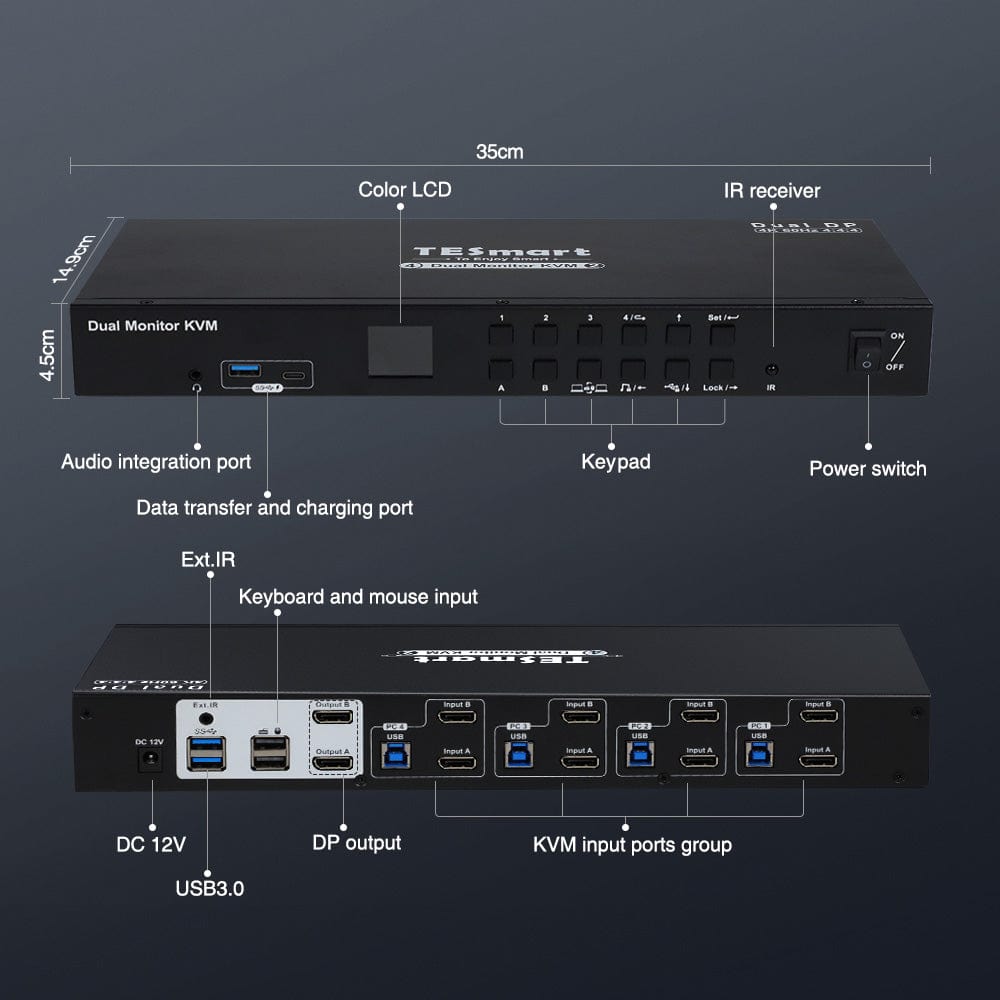

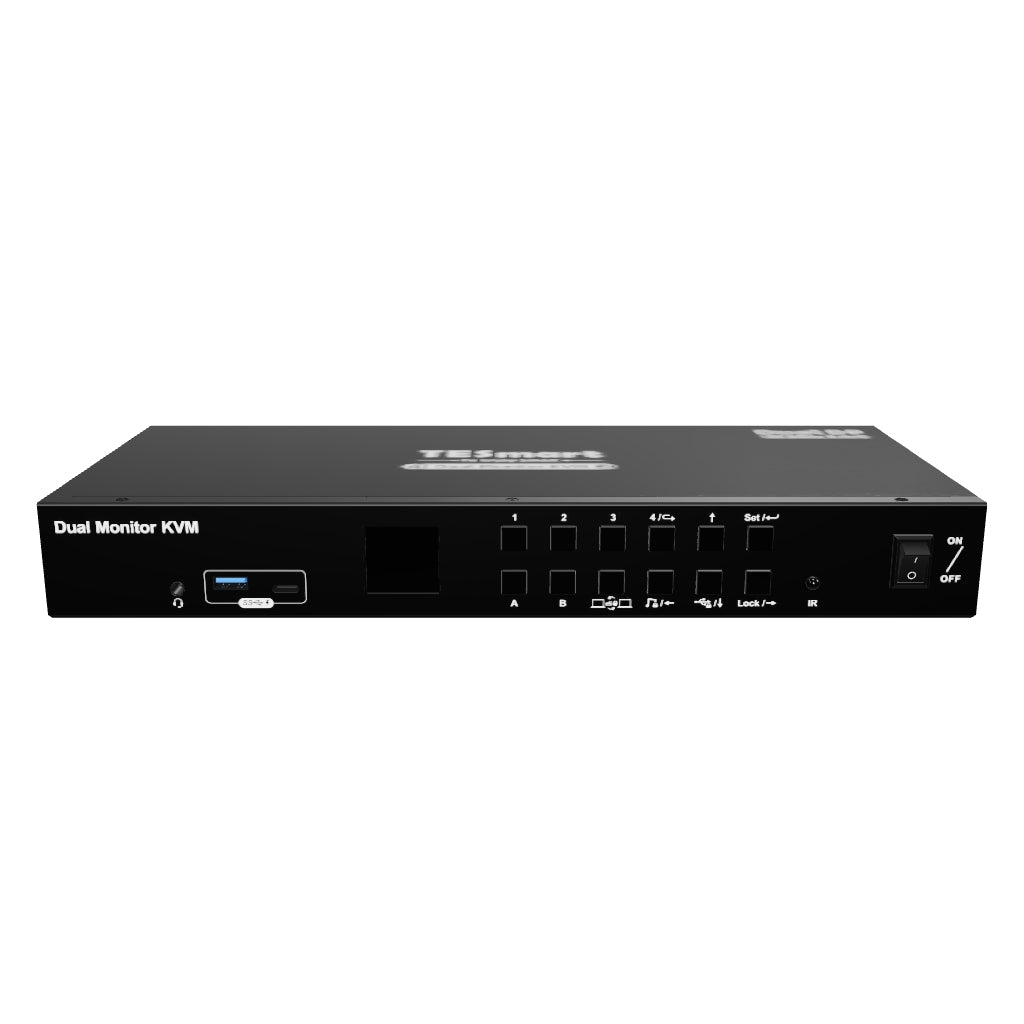

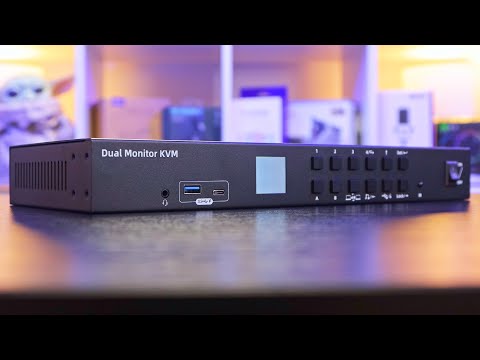

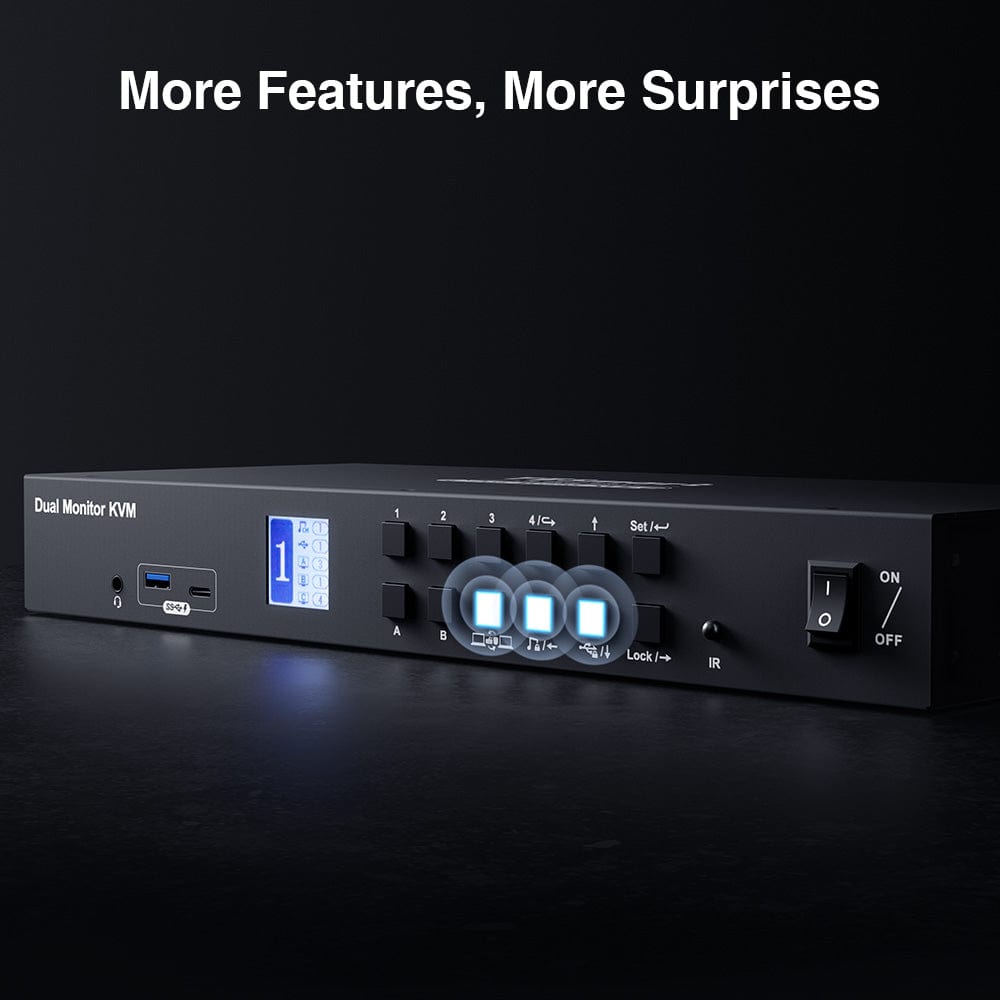

• The new front panel buttons and LCD make it easier to switch and control the monitor signal.

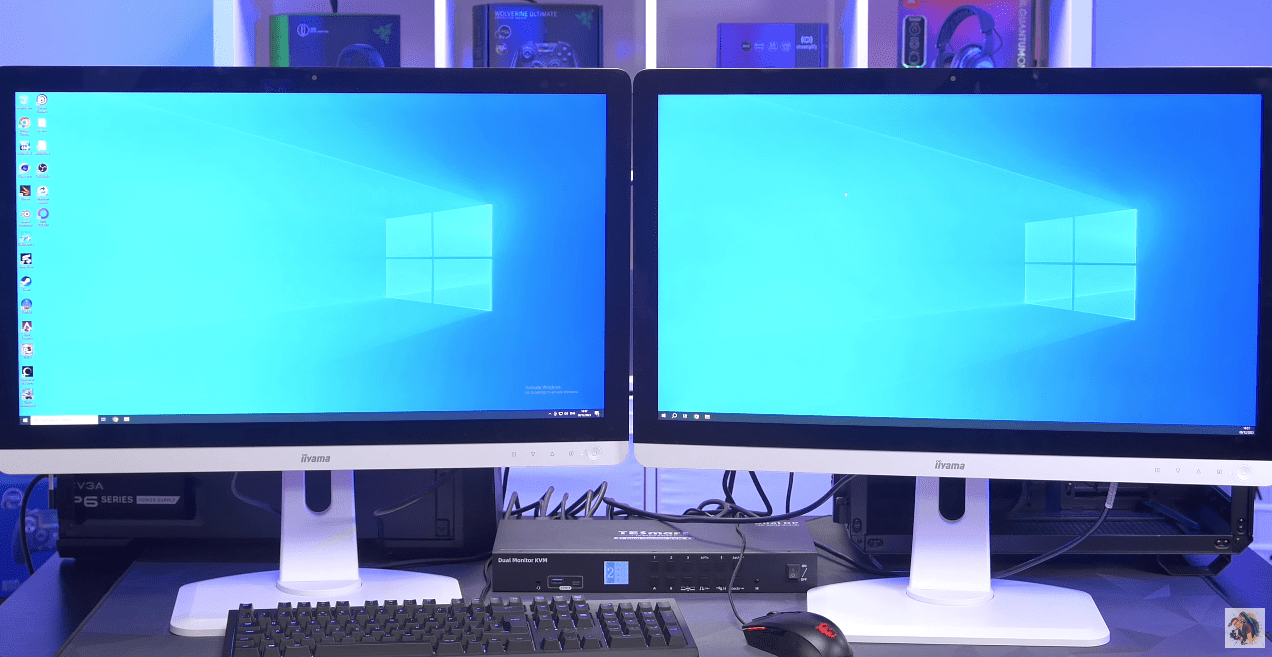

• Efficiently manage 4 PCs with a set of keyboard, mouse, and dual 4K60Hz displays.

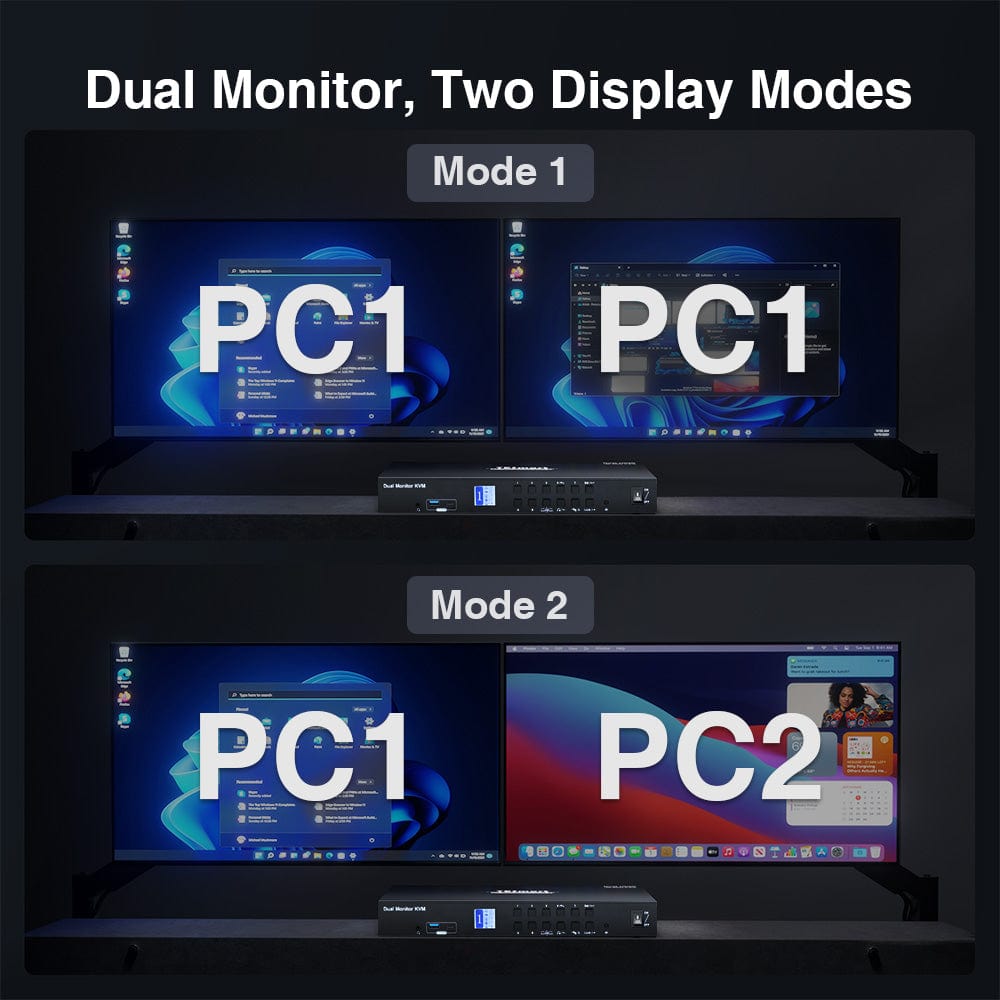

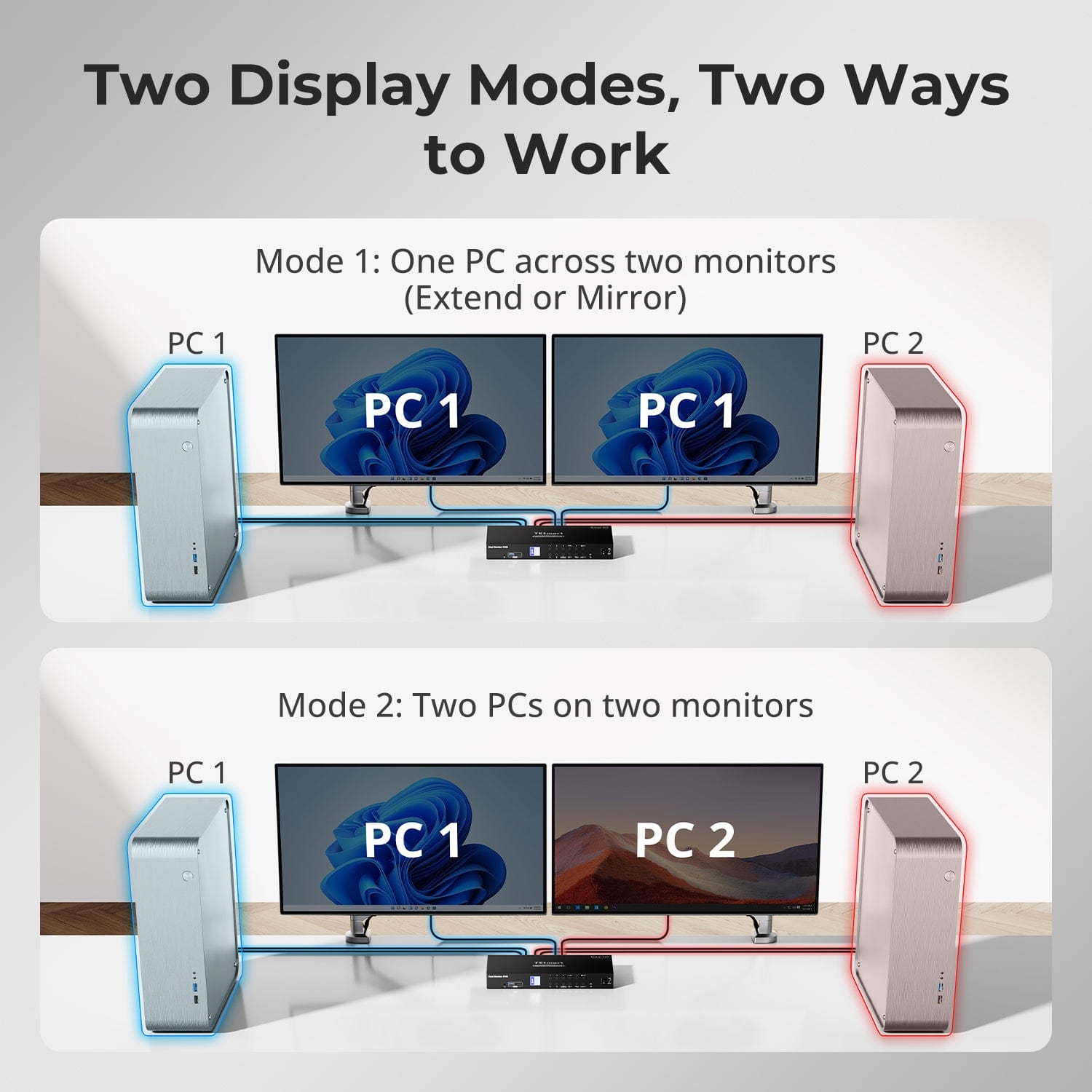

• 2 Operating Modes: Mode 1 for extended desktop and Mode 2 for split desktop (each computer displays on 1 monitor simultaneously).

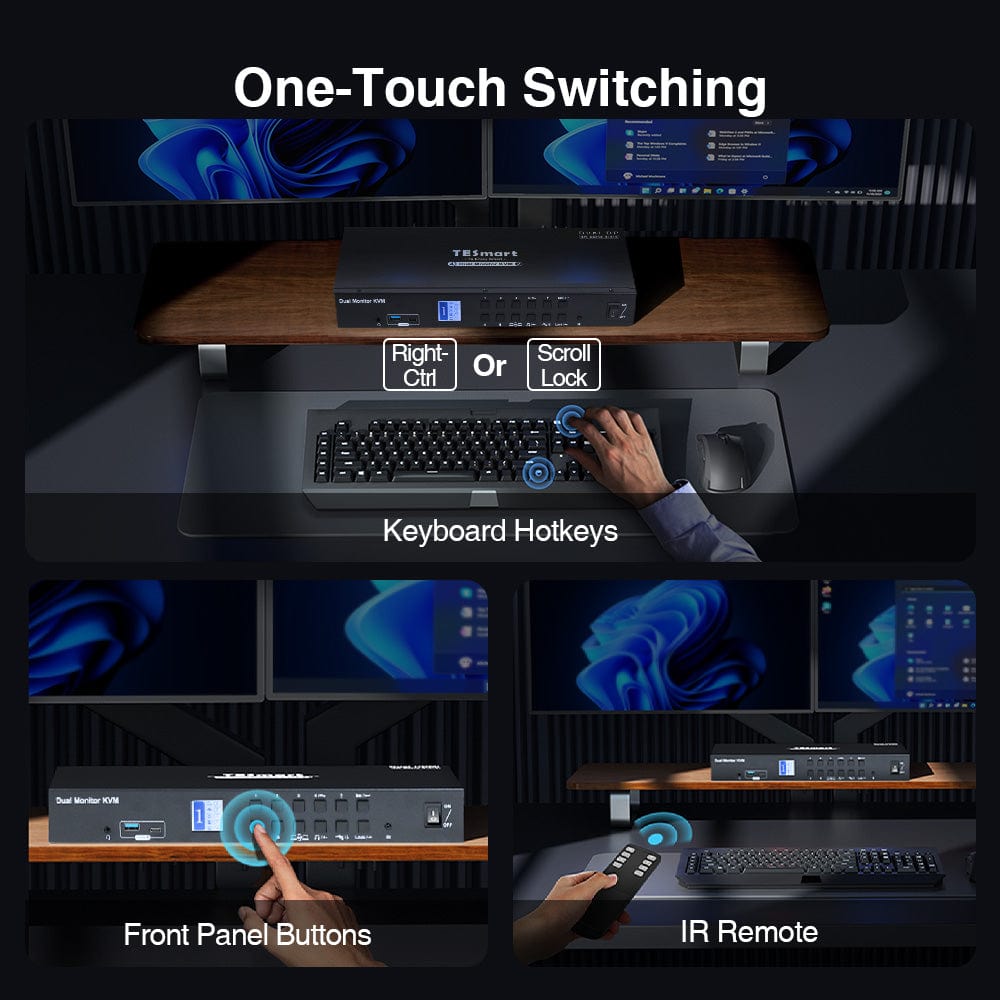

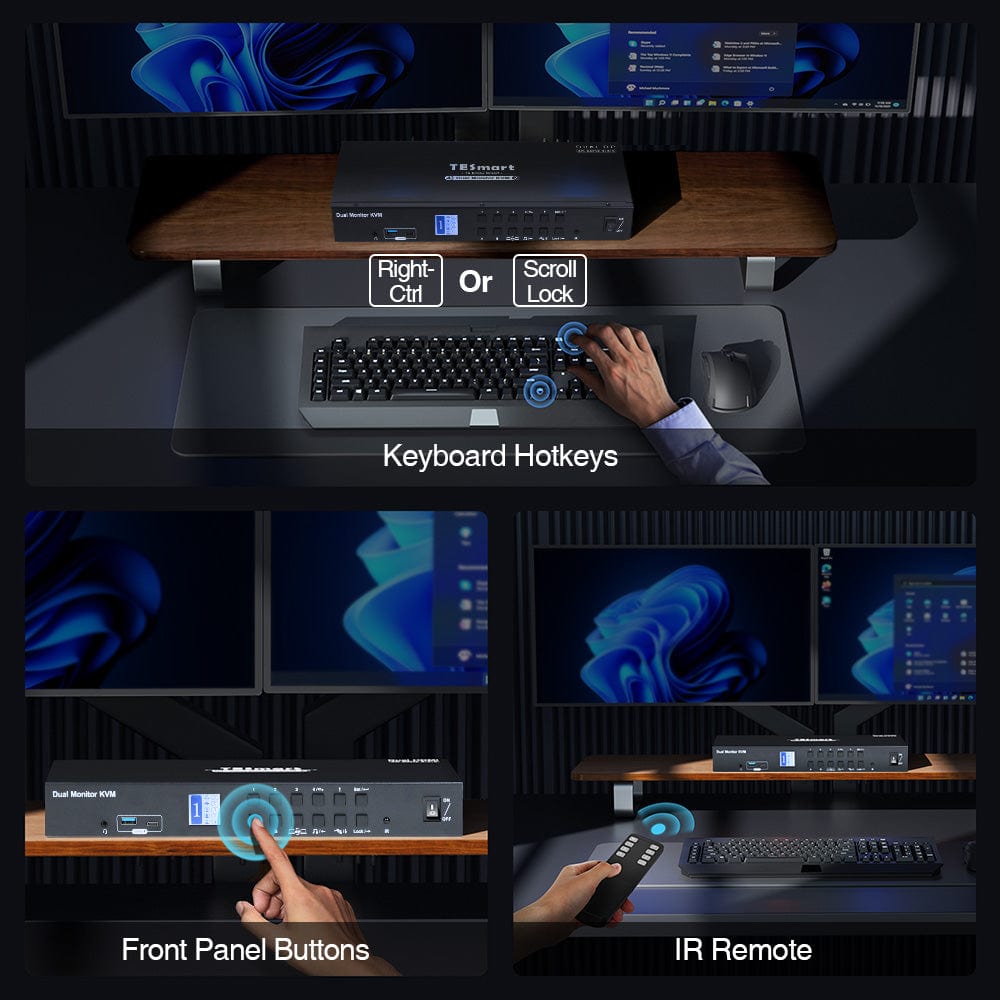

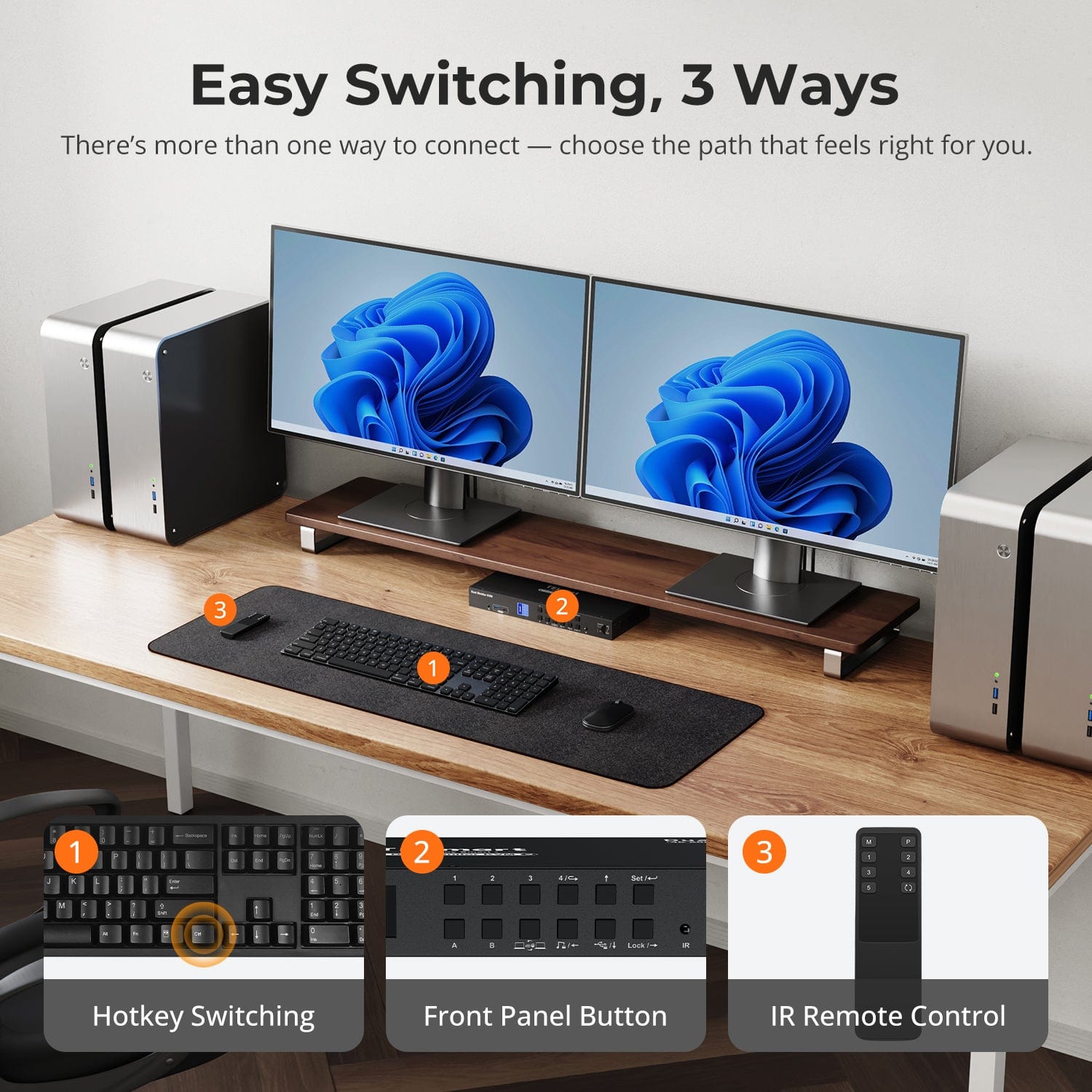

• 3 ways to switch inputs: keyboard hotkeys, front push buttons, and remote control.

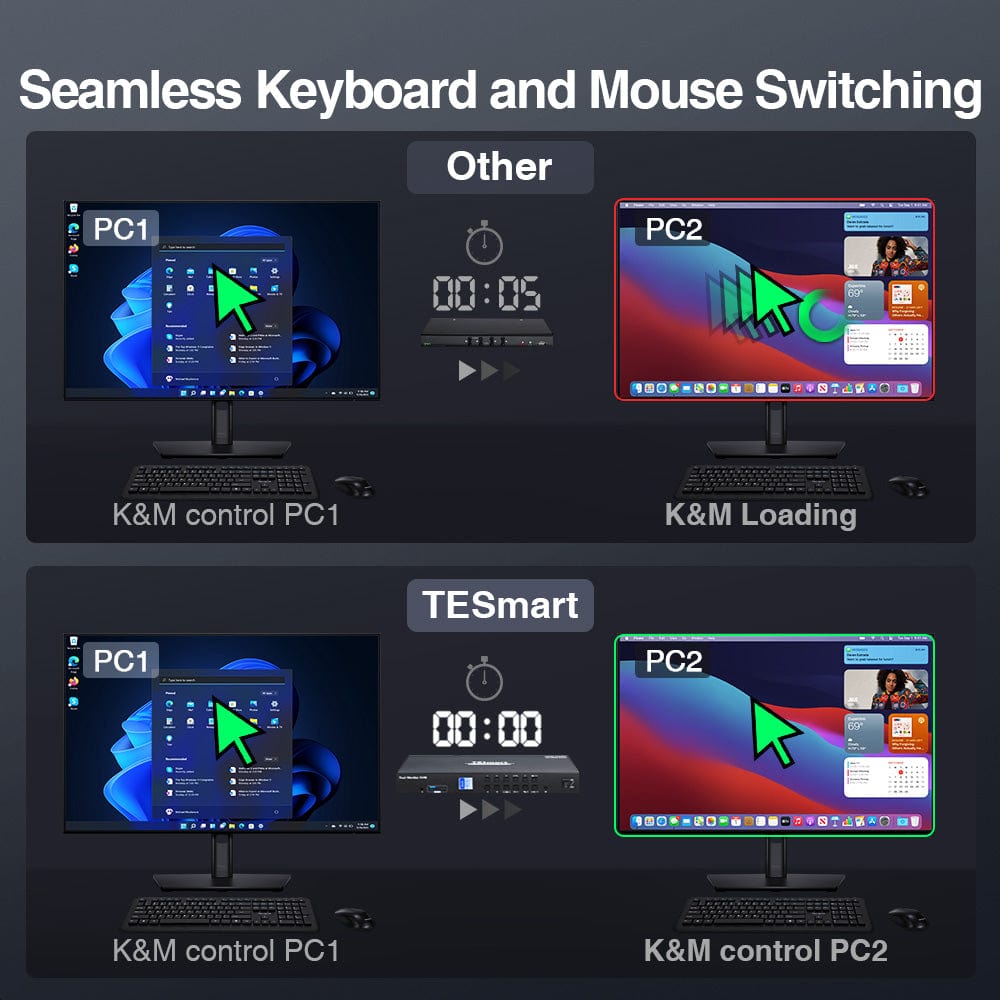

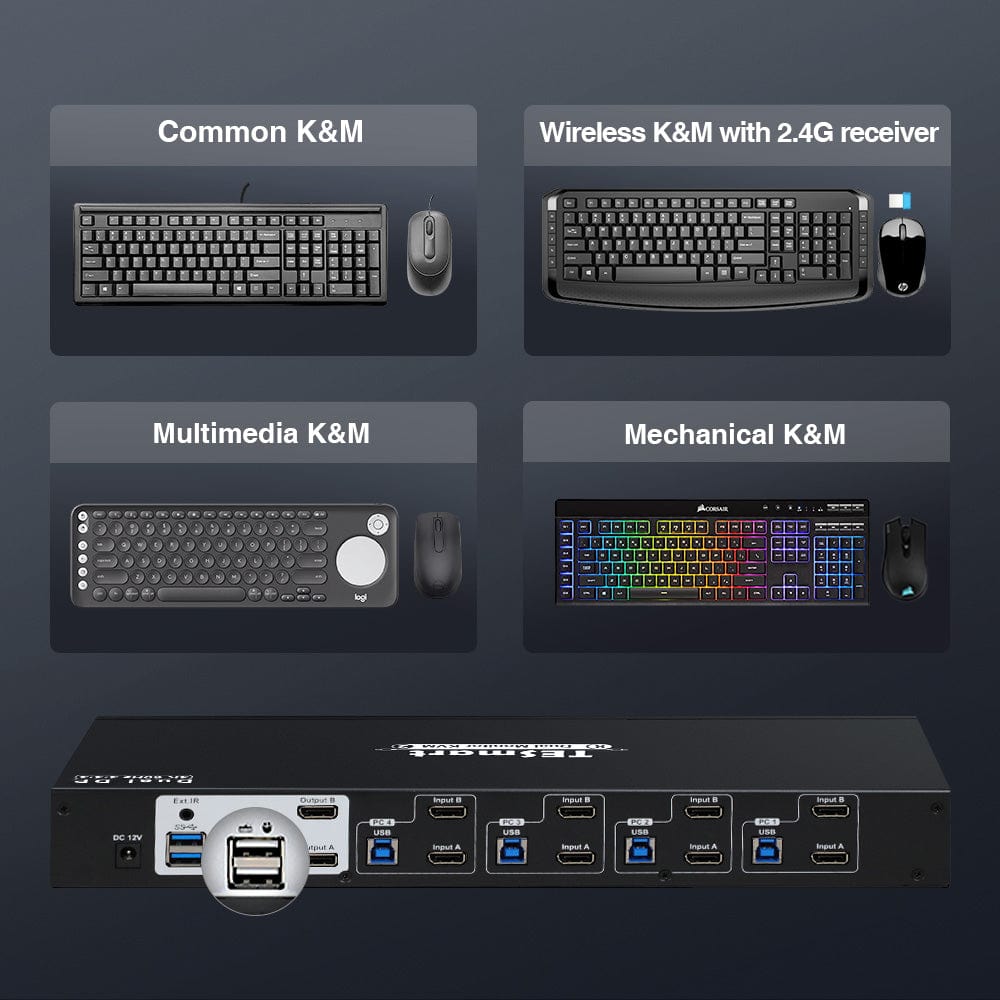

• K&M pass-through for compatibility with various keyboard types: wired, wireless, mechanical, and gaming.
• Easy plug & play setup with no drivers required.
• Compatible with Windows, Mac, and Linux, ideal for home, office, or education scenarios.
• The KVM switch comes with 4 x 1.5m DP/USB combo cables and 4 x 1.5m DP cables. We ensure that all 4 of your computers are connected to the KVM. Typically, monitors come with their own cables. If you need additional cables, we also have high-quality cables for you to choose from.
• Note 1: due to technological reasons, all switching functions for dual monitors can only work if both graphics cables are connected to each computer.

OTHER FEATURES

• Assignable hotkey triggers from Scroll Lock to Right-CTRL.

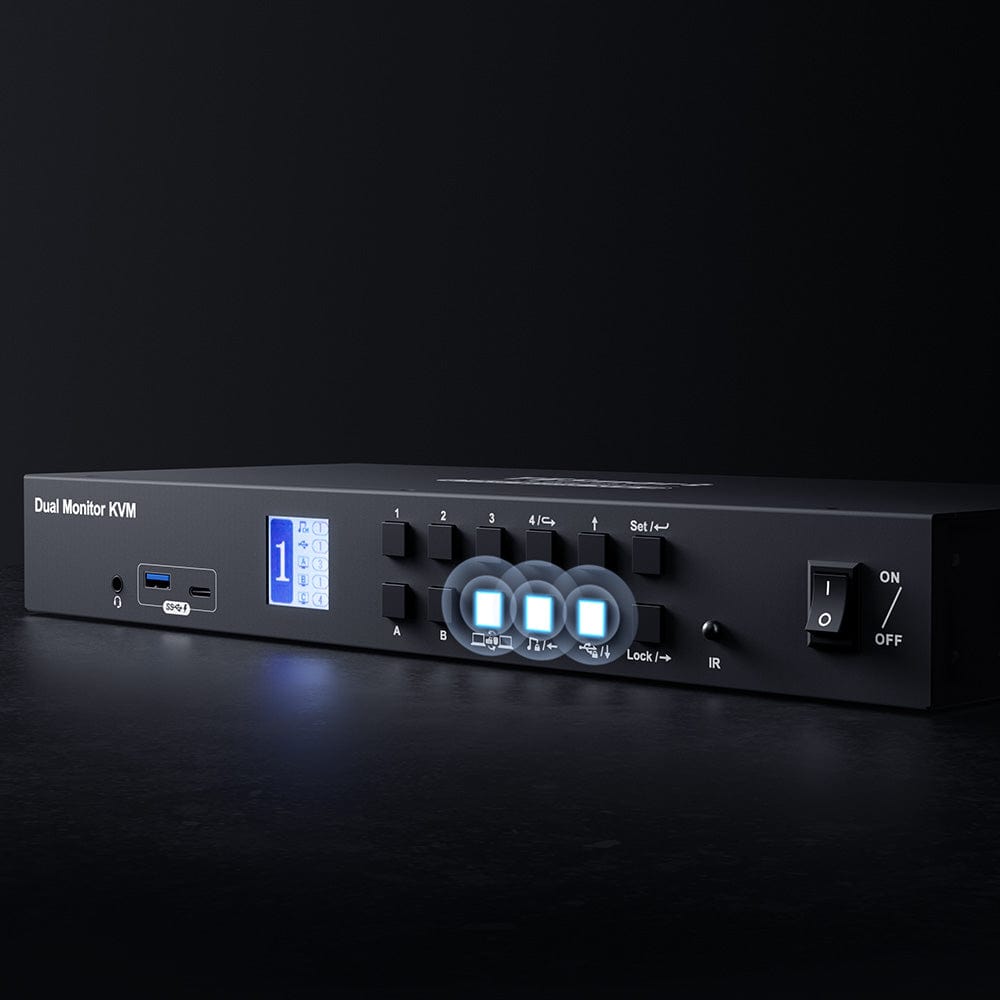

• Support function settings on the front panel which can switch ports, turn on/off auto scan, change hotkey trigger, lock audio and USB 3.0, and other functions.

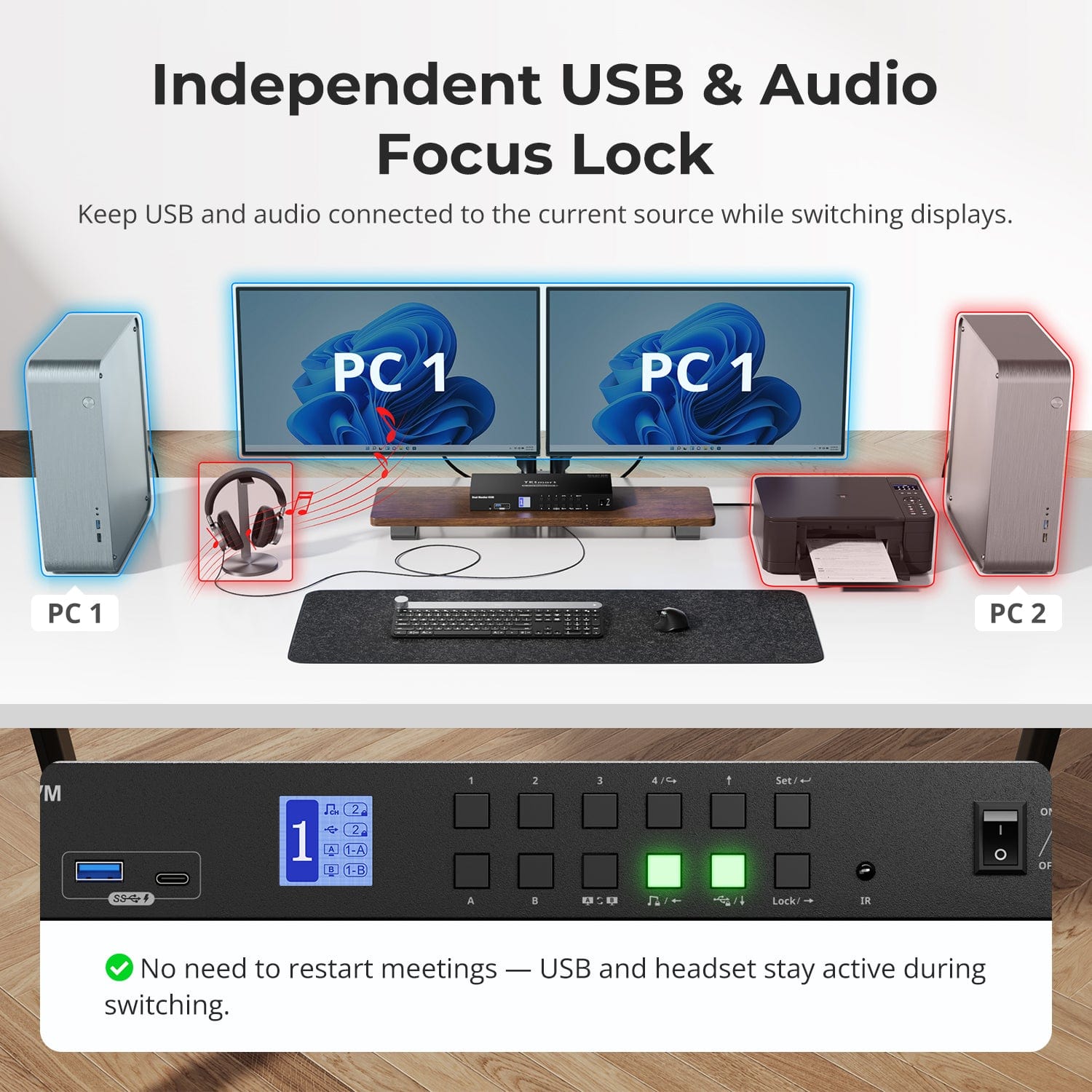

• Support locking L/R audio and USB 3.0 devices to a fixed PC.

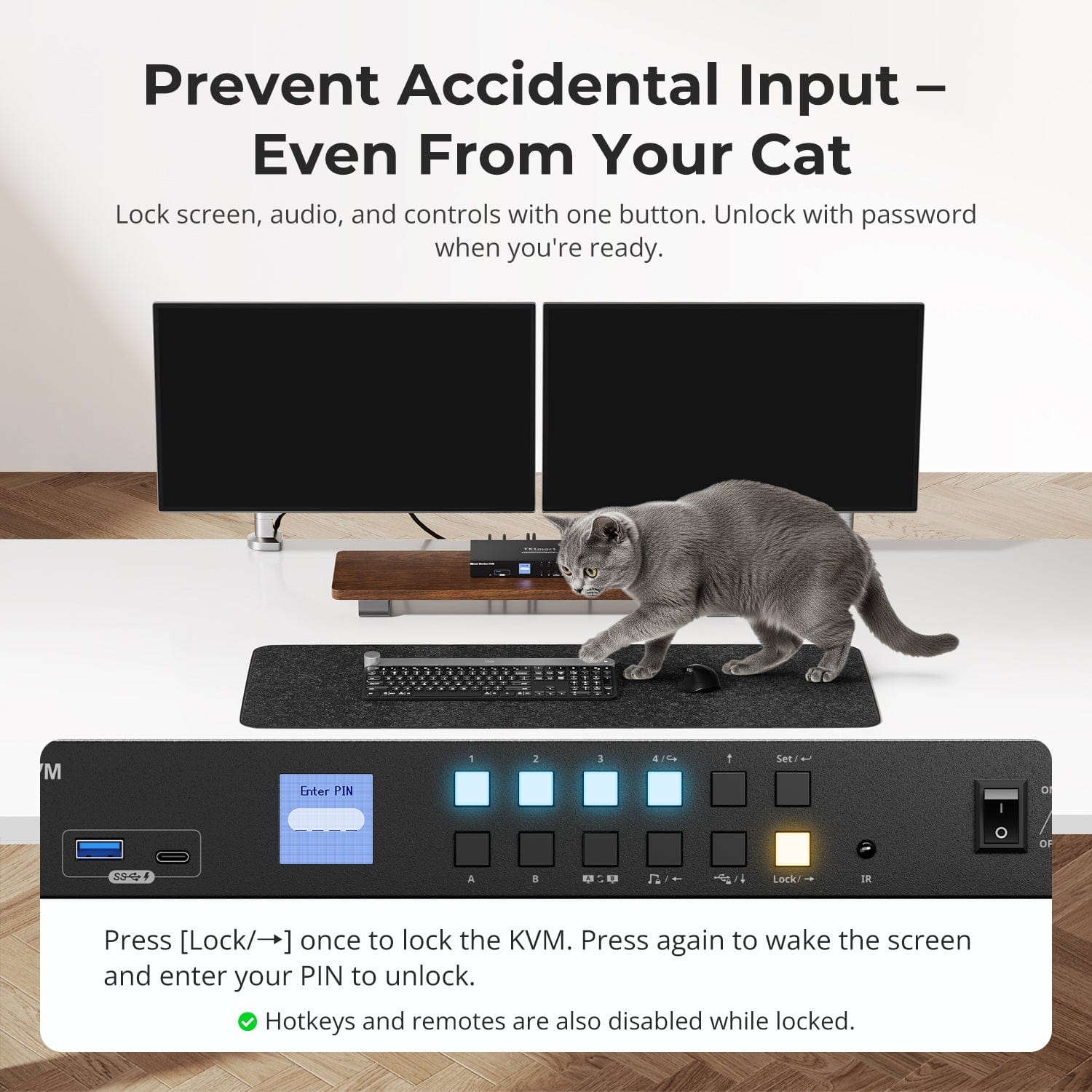

• One-touch locking KVM to protect private information, with audio output pause and LCD screen brightness reduction.

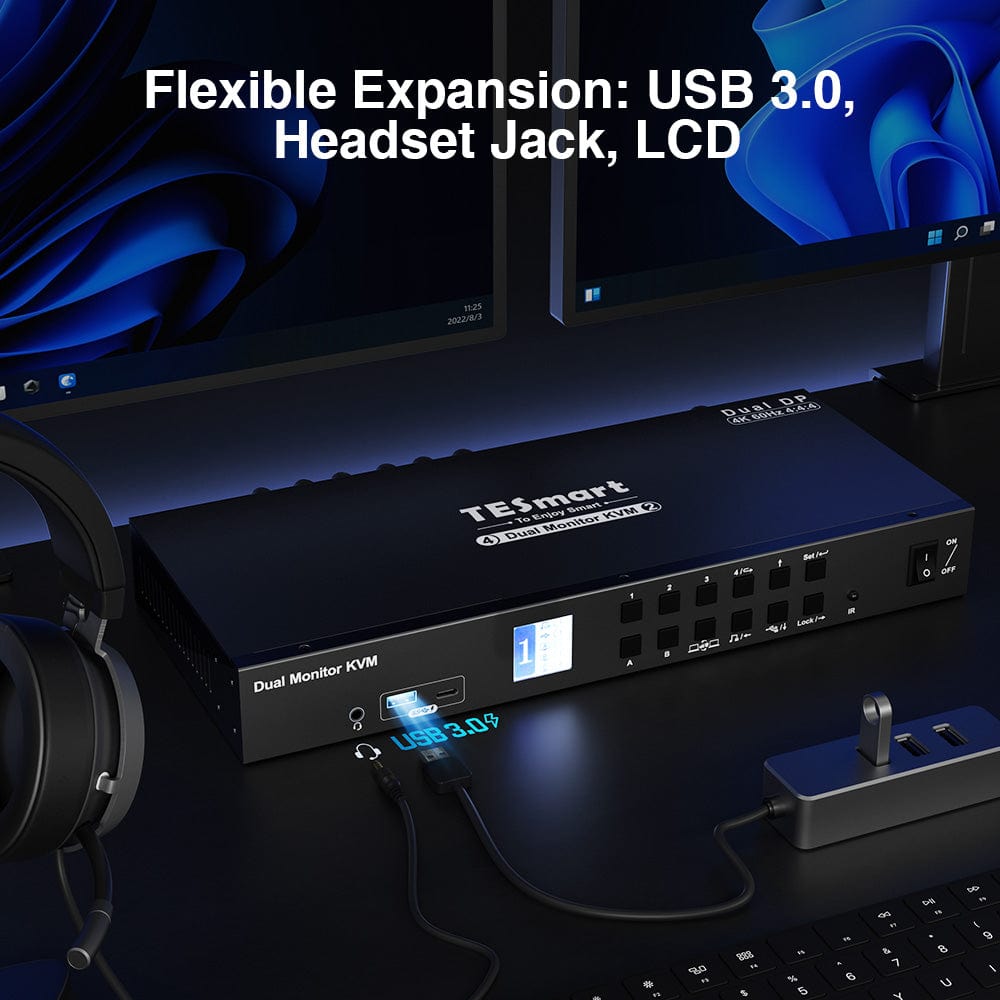

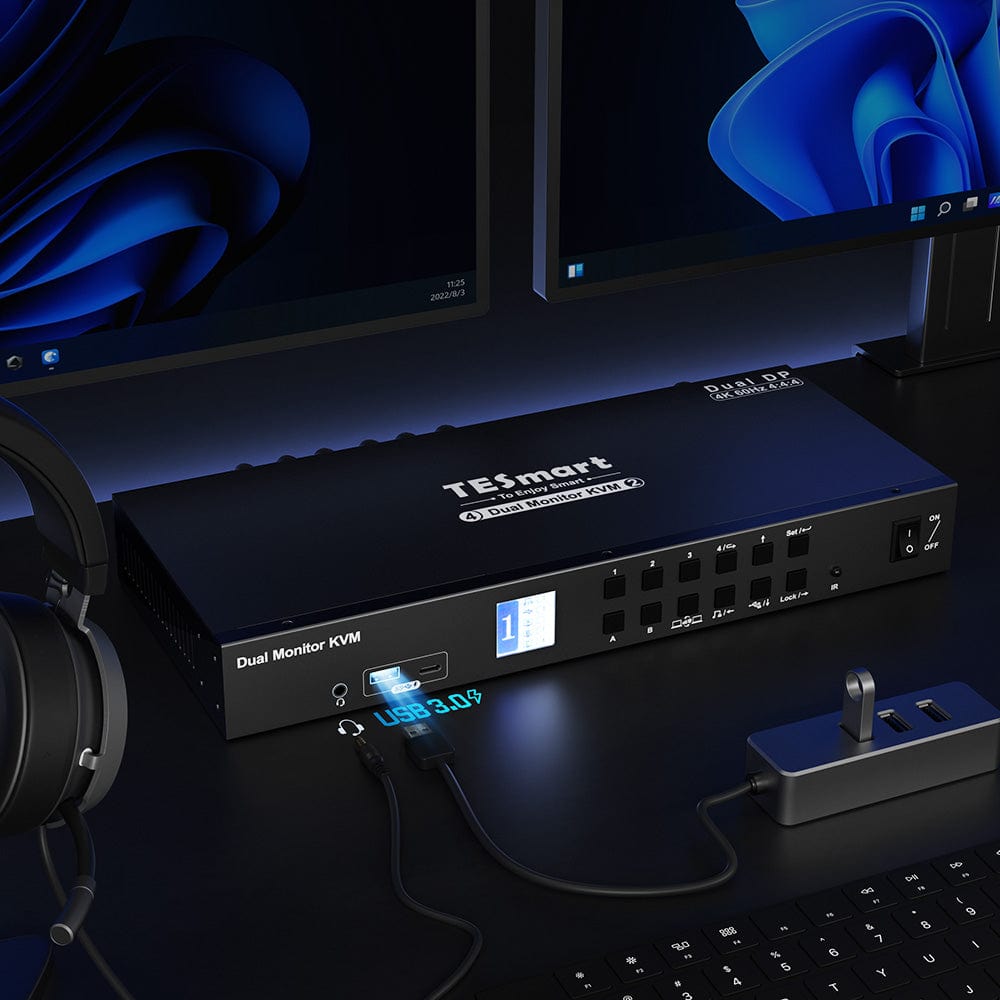

• USB sharing for printers, jump drives, USB headsets, and webcams for teleconferencing.
• Supports automatic switching to monitor computers at a specified time interval.
• Transmits audio over HDMI to monitors or external speakers via KVM's stereo output.

TECHNICAL SPECIFICATIONS

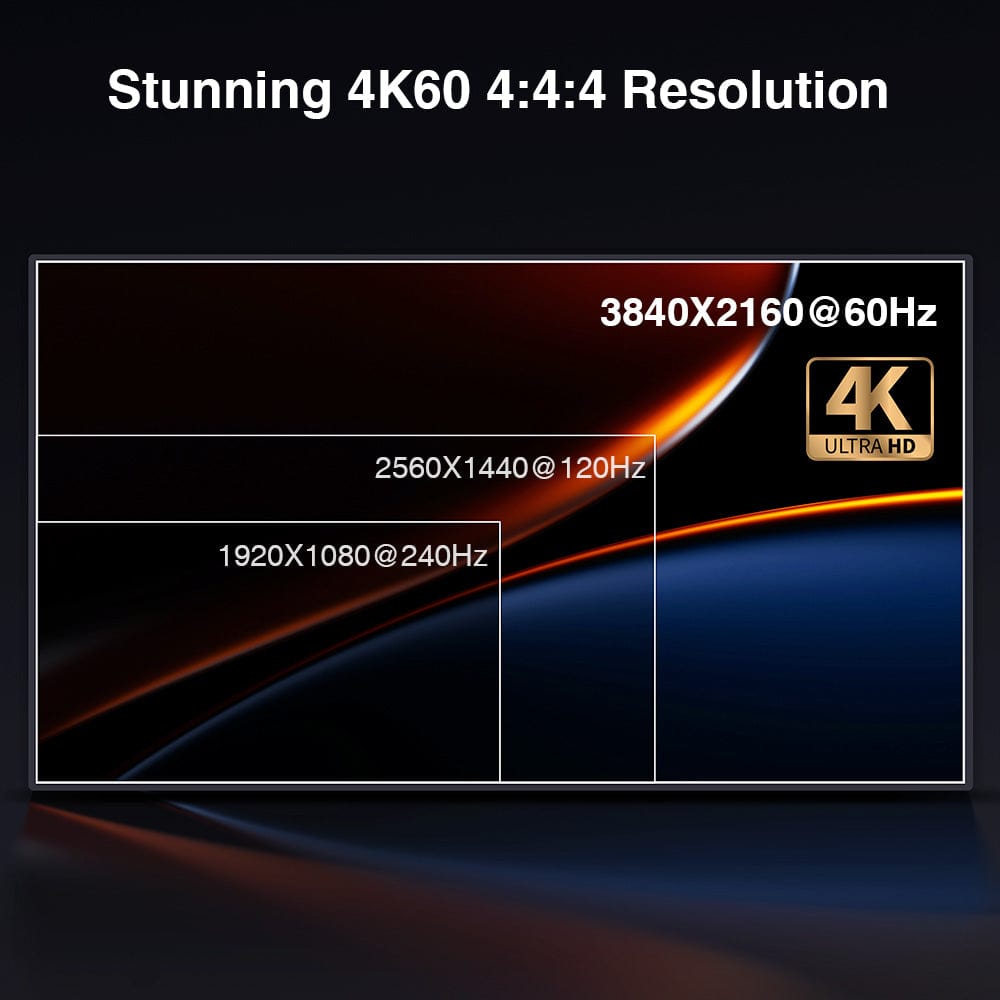

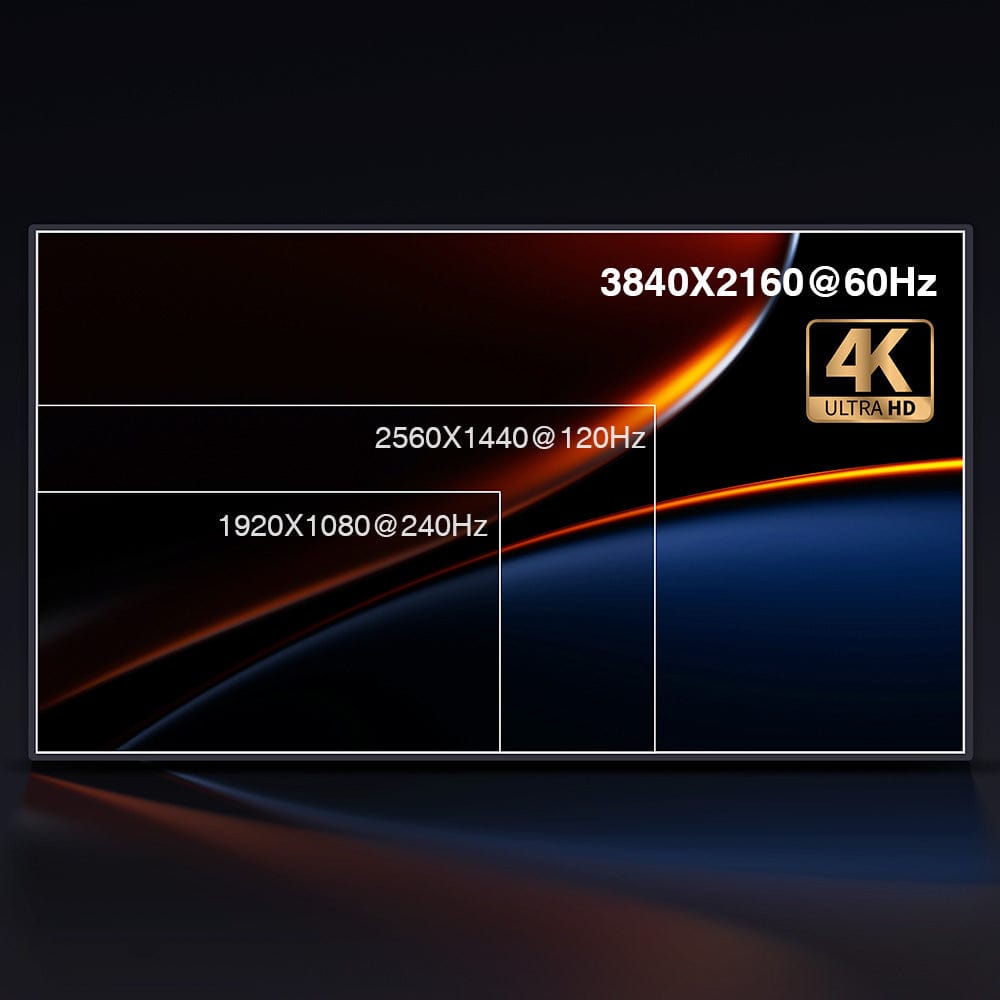

• DP 1.4 supports :8K@30Hz,3840x2560@144Hz (DSC),5120x1440@60hz,(3840x1080)@120hz,(3440x1440)@120hz,(2560x1440)@165hz,(1920x1080)@240hz
• With HDCP 2.2 support, you can not only connect PCs and laptops(possibly via docking stations) but also game consoles, etc.

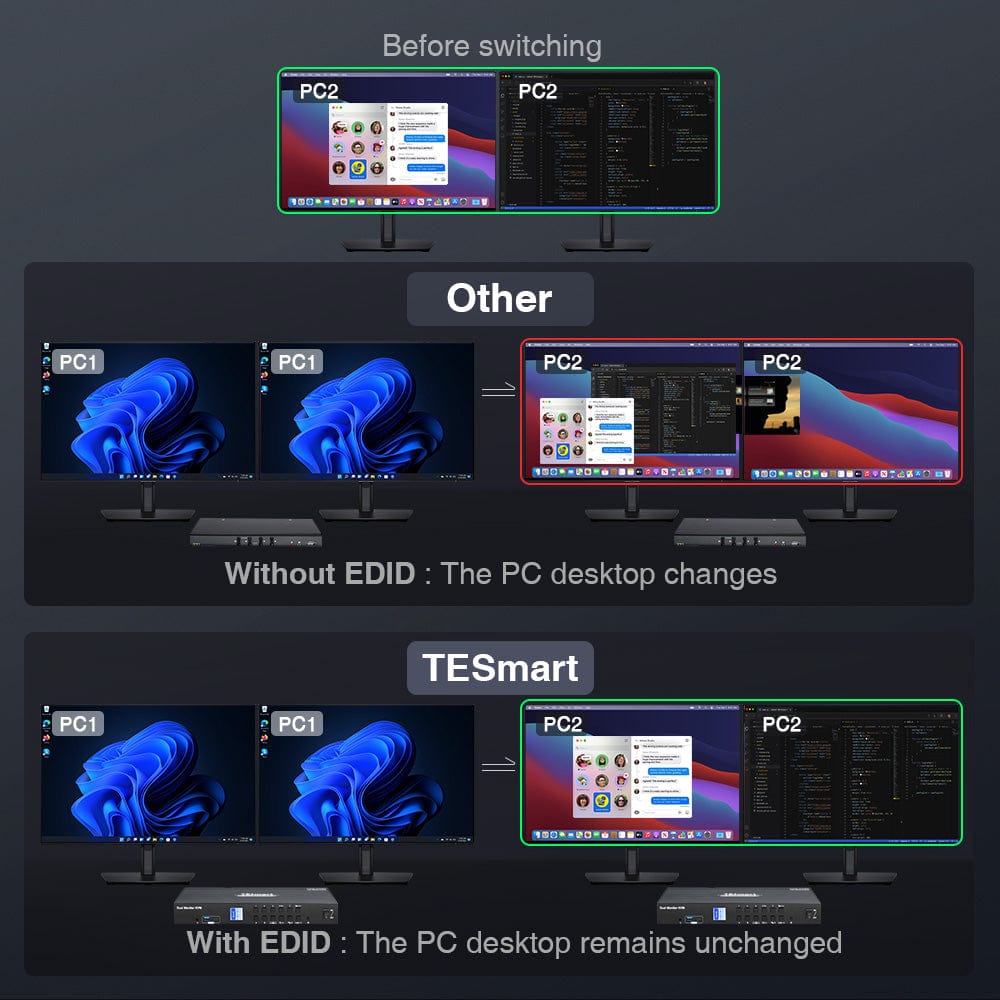

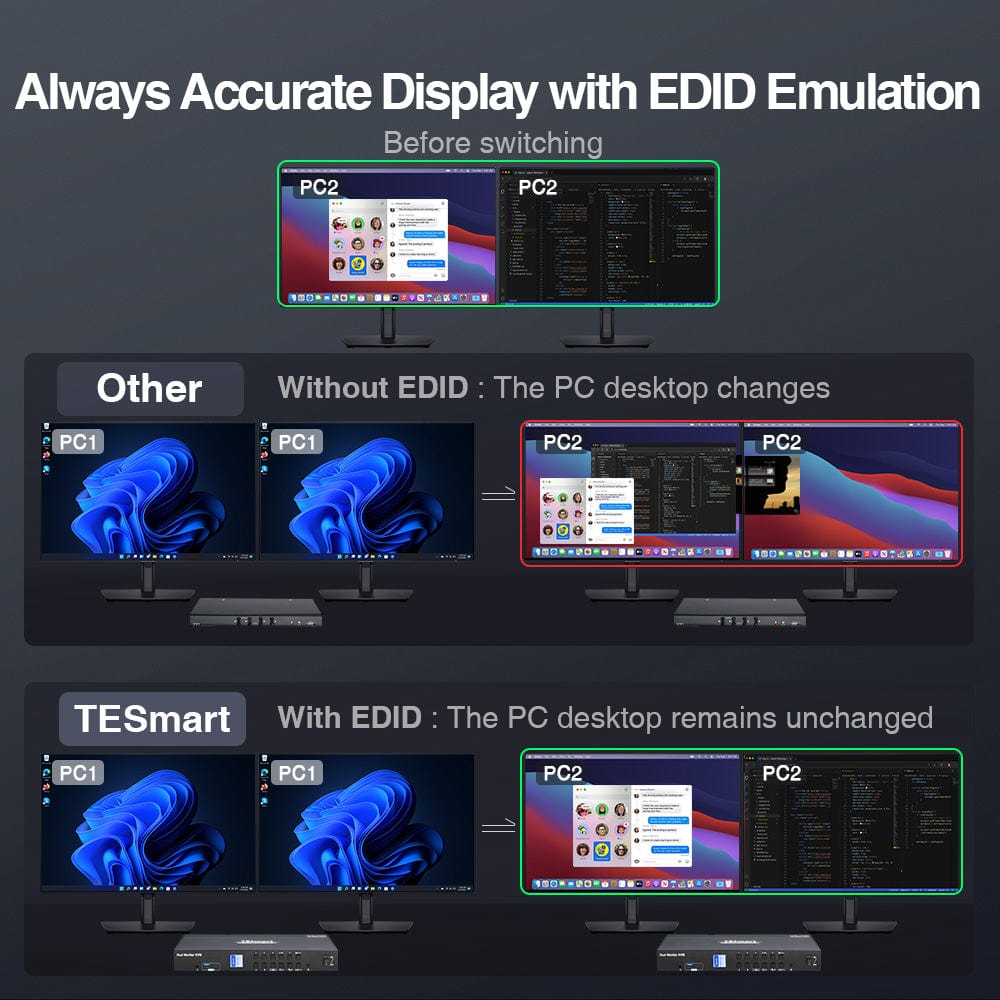

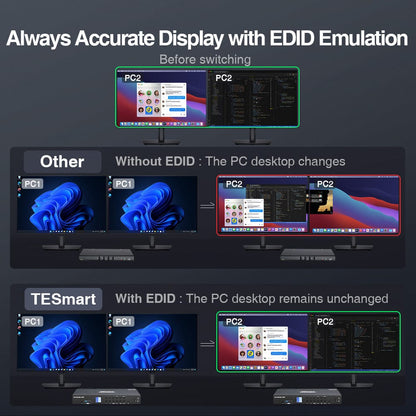

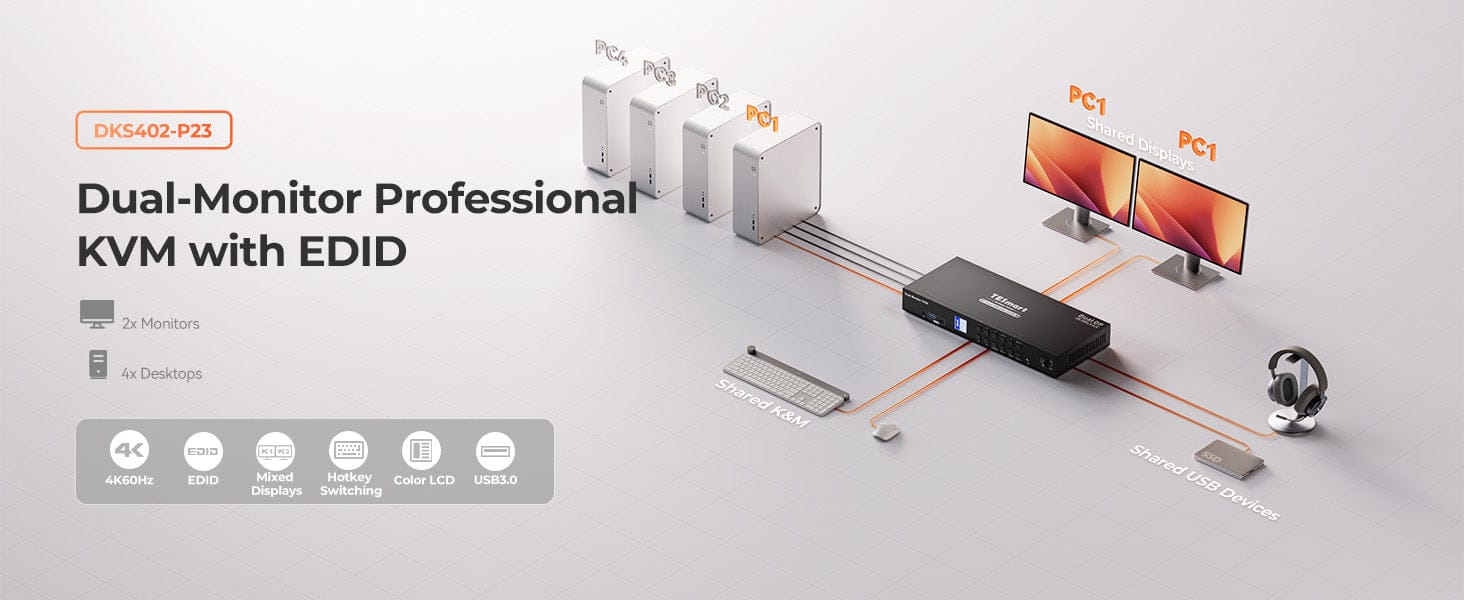

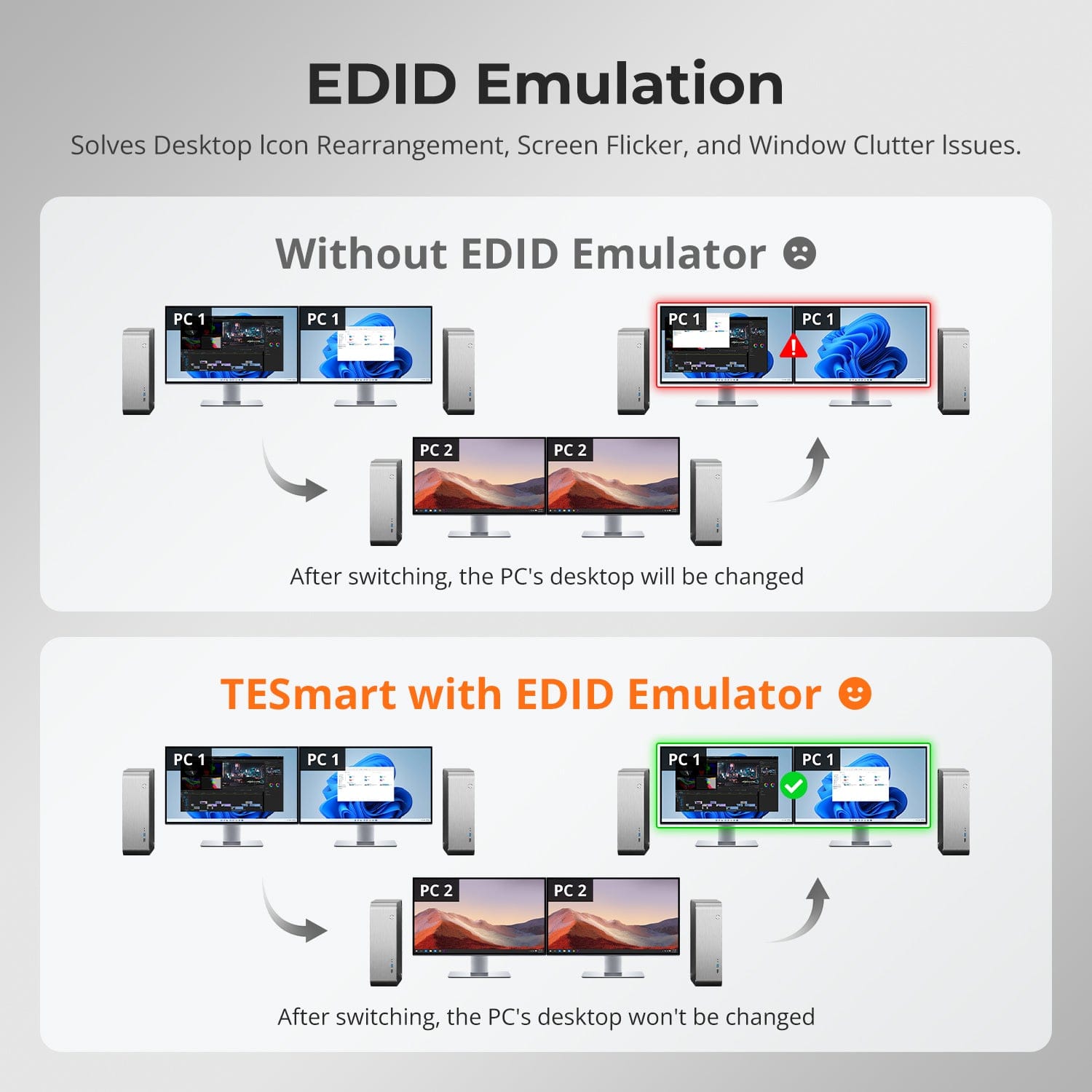

• EDID emulation to prevent resolution and icon rearrangement.
• HDR10 and Dolby Vision support.
• No delay, zero latency keyboard.
• On/off switch on the front.

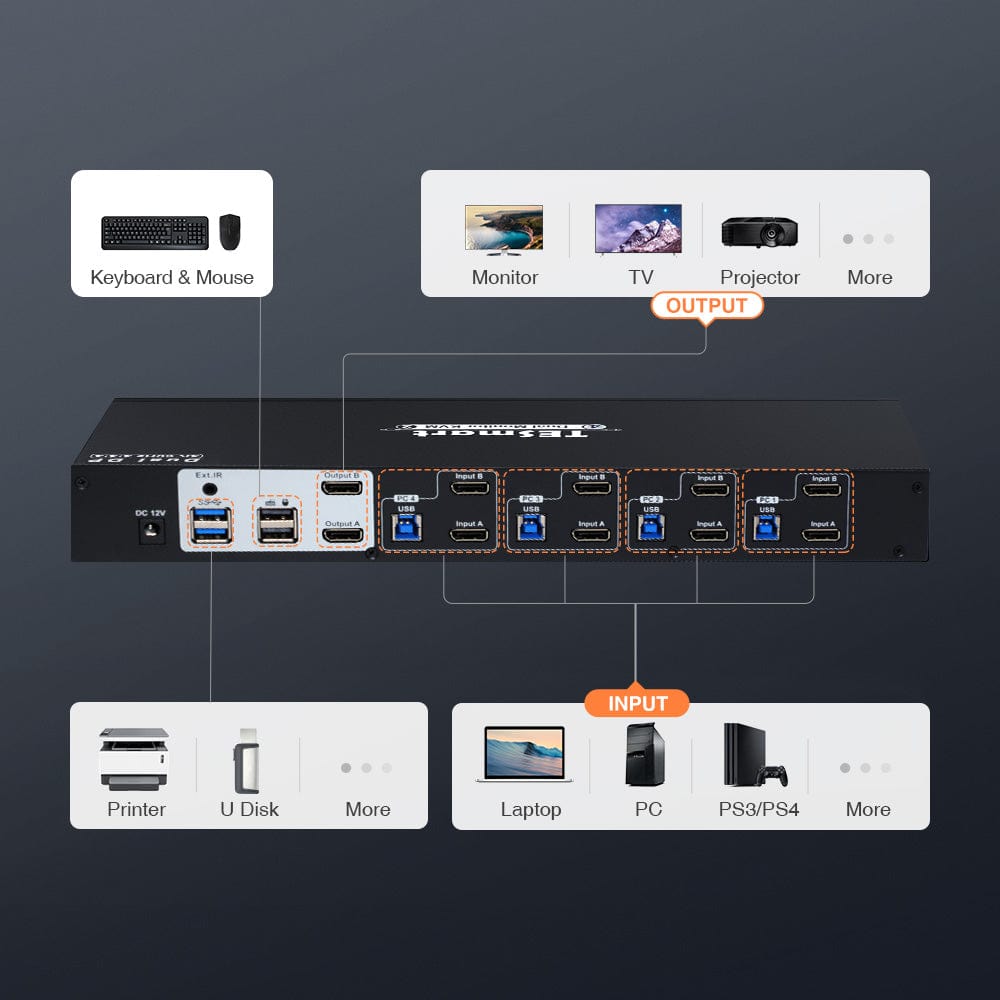

• All connections are at the back.
• IR remote control (battery not included). Requires 2 AAA batteries.

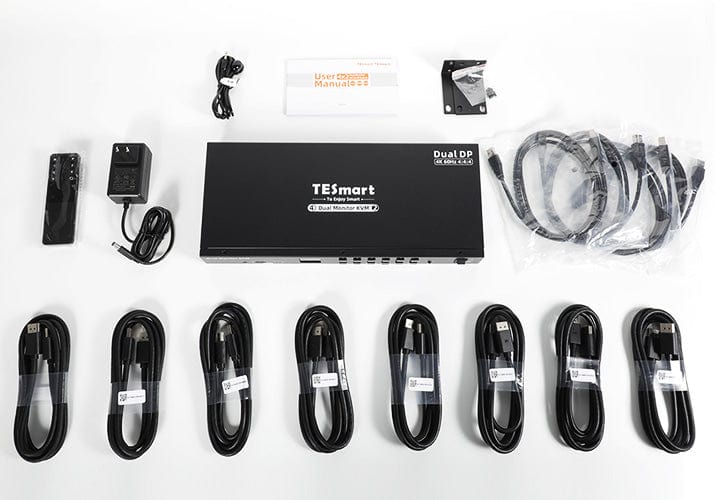

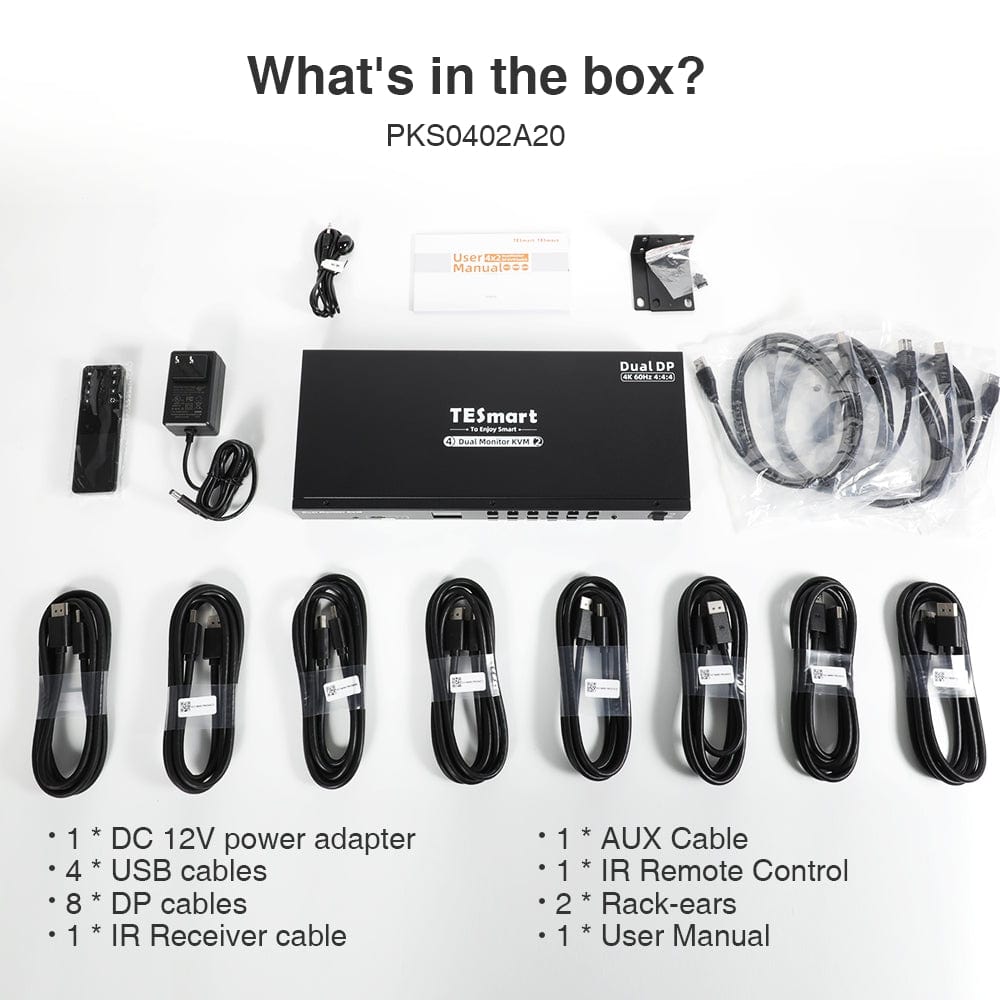

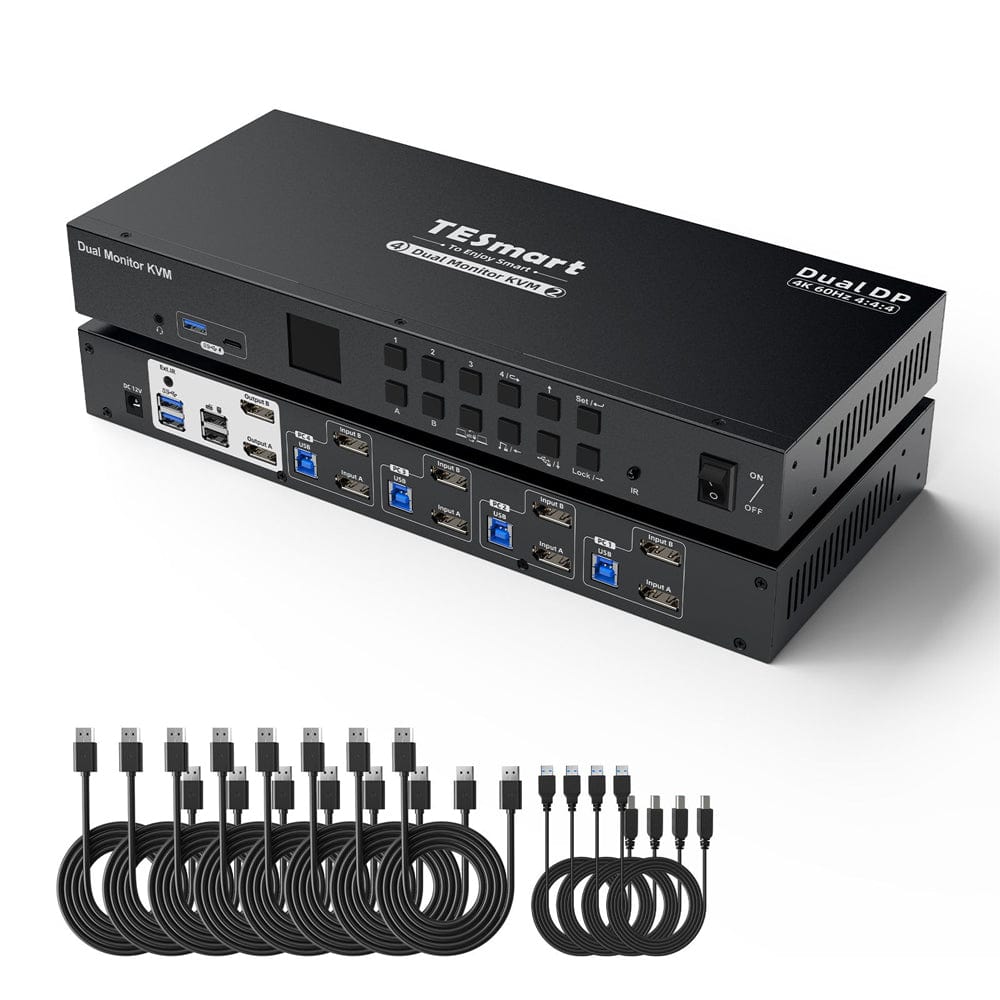

PACKING LIST

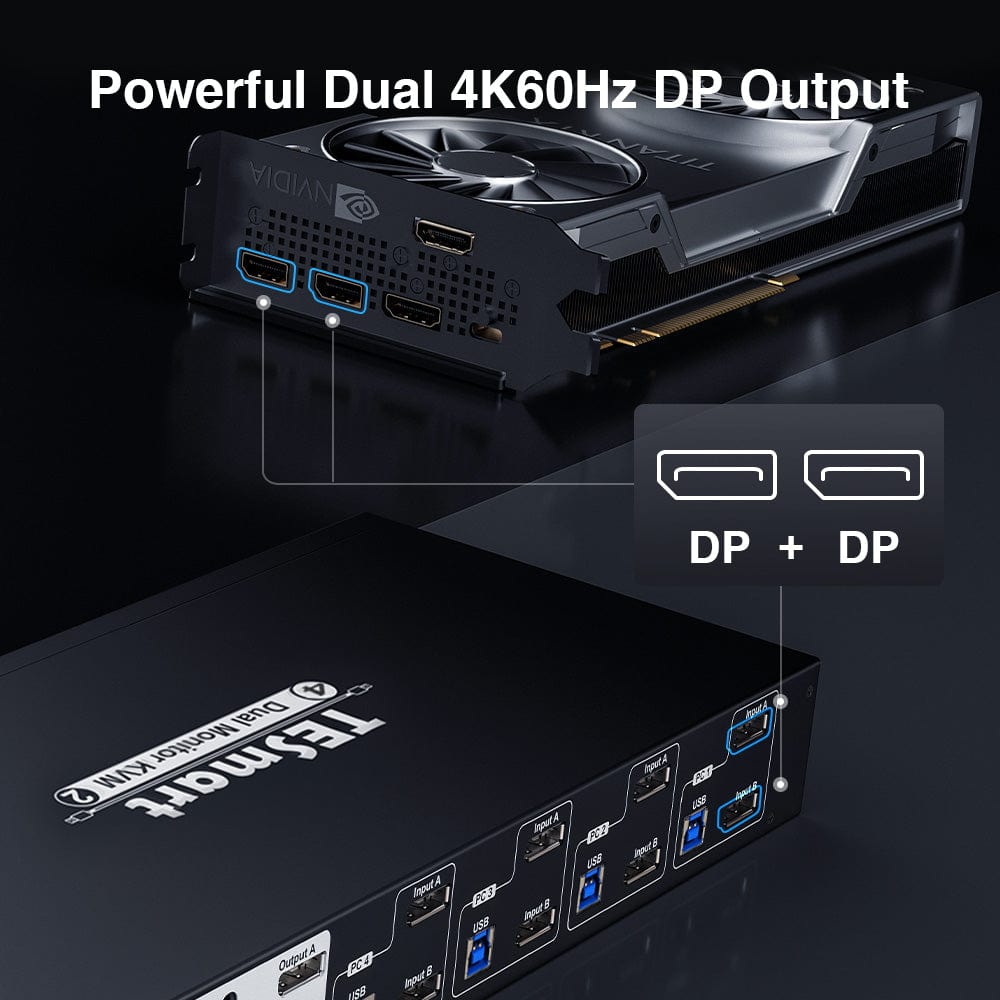

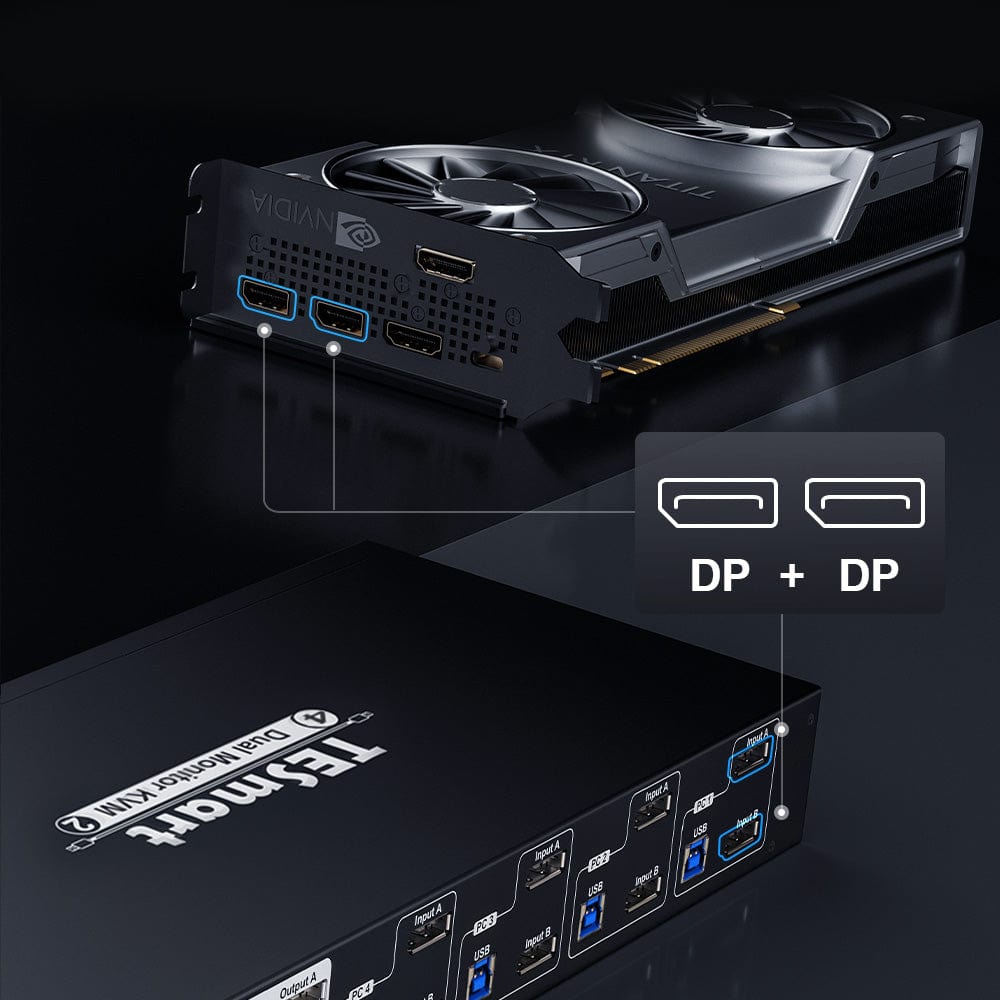

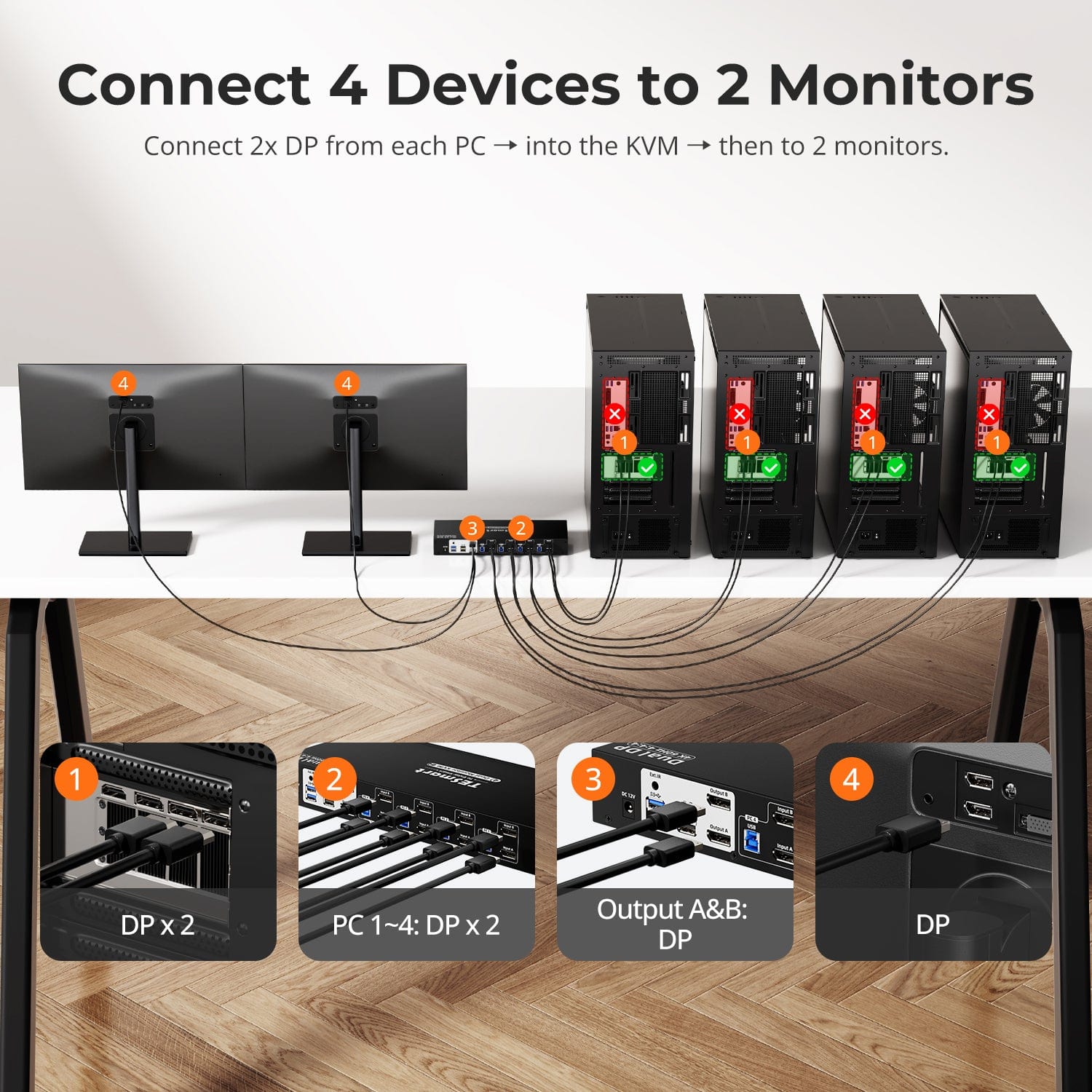

EACH PC MUST MAKE 2 VIDEO CONNECTIONS (DP+DP) TO KVM FOR DUAL MONITORS.

• 1 * 4x2 DP KVM Switch
• 4 * KVM (DP+USB) Cables
• 4 * DP Cables
• 1 * IR Extension Cable
• 1 * IR Remote Control
• 1 * DC 12V Power Adapter
• 1 * User Manual
• 2 * Rack-ears

SHIPPING

• We provide Free Express (UPS/USPS/DHL ) for US shipping orders.

1 YEAR WARRANTY, EXTENDED TO 3 YEARS

• TESmart KVM switch comes with a 1-year warranty from the date of purchase. We offer a registration extension warranty program, register to extend the warranty to 3 years.
• The warranty covers any defects in materials or workmanship under normal use. We reserve the right to replace any defective product under warranty (No Repairs, Only Exchanges).

FAQs

• The switch must receive video signals on both DP inputs per PC for dual monitor output.
• The audio integration port (the L/R and MIC) is transmitted via the USB connection. The USB A/B cable is required for audio.
• Hotkeys are triggered via a keyboard plugged into the dedicated mouse or keyboard ports.
• Emulation programming is locked and cannot be removed from mouse & keyboard ports.
• Dedicated mouse & keyboard ports should not be used for other types of USB devices.
• Use a powered USB hub to expand the number of USB 3.0 ports.
• If the wireless mouse/keyboard is “jumpy”, use a USB extender to reduce the distance from the receiver.
• Please install 2 AAA batteries before using the remote control (battery not included).

COMPATIBILITY INFORMATION

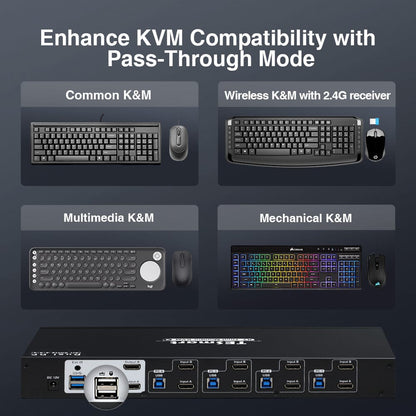

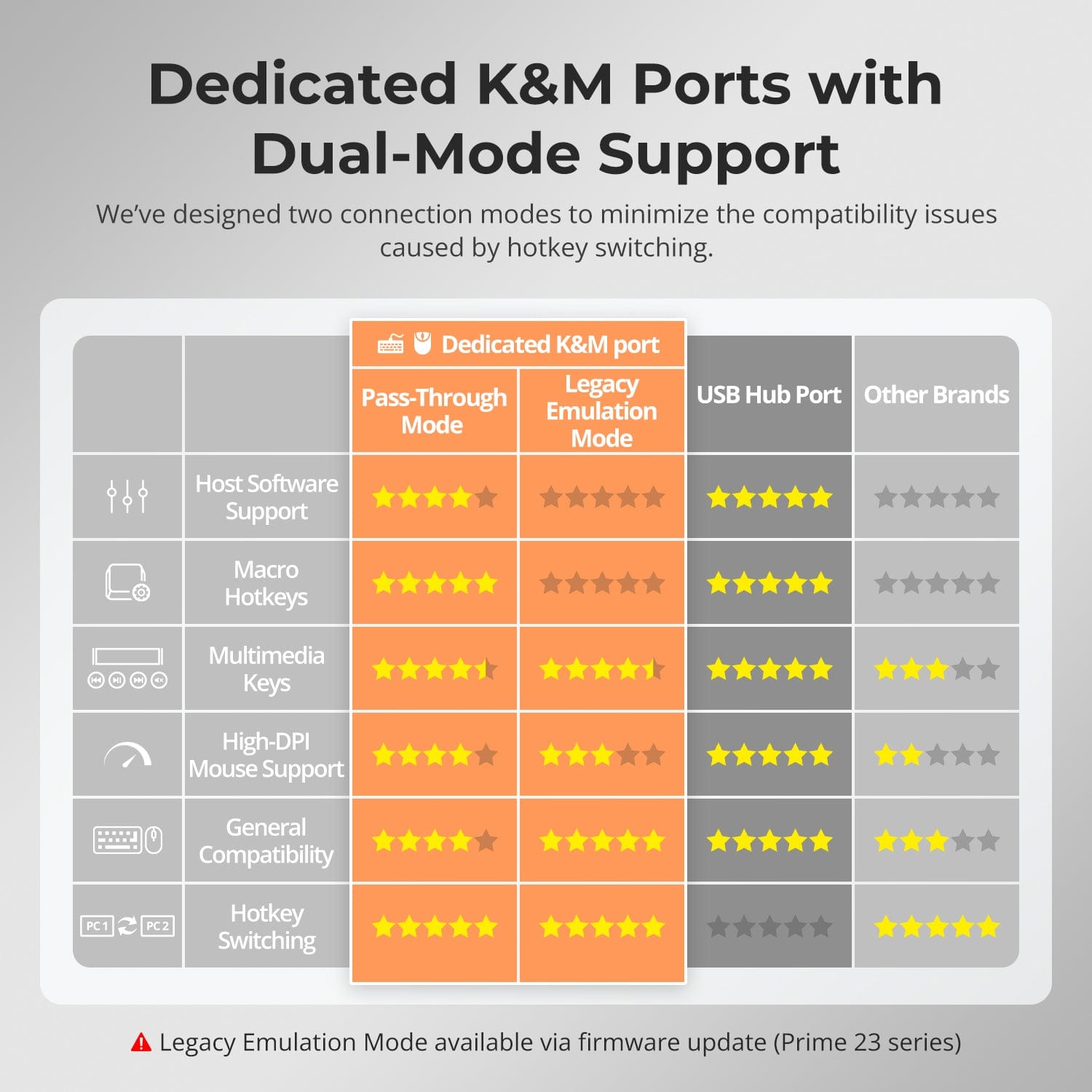

• Dedicated mouse & keyboard ports have emulation programming. Second-generation chipsets have “Passthrough Mode” to send special characters such as multimedia keys (play, pause, volume up/down, etc), which greatly improves keyboard compatibility.
• Keyboard software such as Logitech Options, DAS Q, Corsair iCUE, etc conflicts with the emulation programming and limits the ability to use dedicated macro keys. We recommend using the KVM’s USB 3.0 port as a workaround if this software is desired. The USB 3.0 port does not have emulation programming and therefore the KVM will not recognize hotkey switching commands. Please use a powered USB hub to expand USB connectivity, if needed.
